Product Catalogue

ButterflyMX makes property access simple. Secure, convenient, and affordable access and security for building owners, managers, residents, and visitors.

9 Products:

• Video Intercoms — smartphone video calls and door release
• QR Code Intercom — keyless QR-based entry
• Access Control — unified cloud platform for all entry points
• Package Room — automated delivery management
• Security Cameras — cloud-connected surveillance
• Vehicle Access — smartphone gate control
• Smart Locks — app-controlled unit locks
• Elevator Controls — floor-level restrictions
• Front Desk Station — centralized concierge console

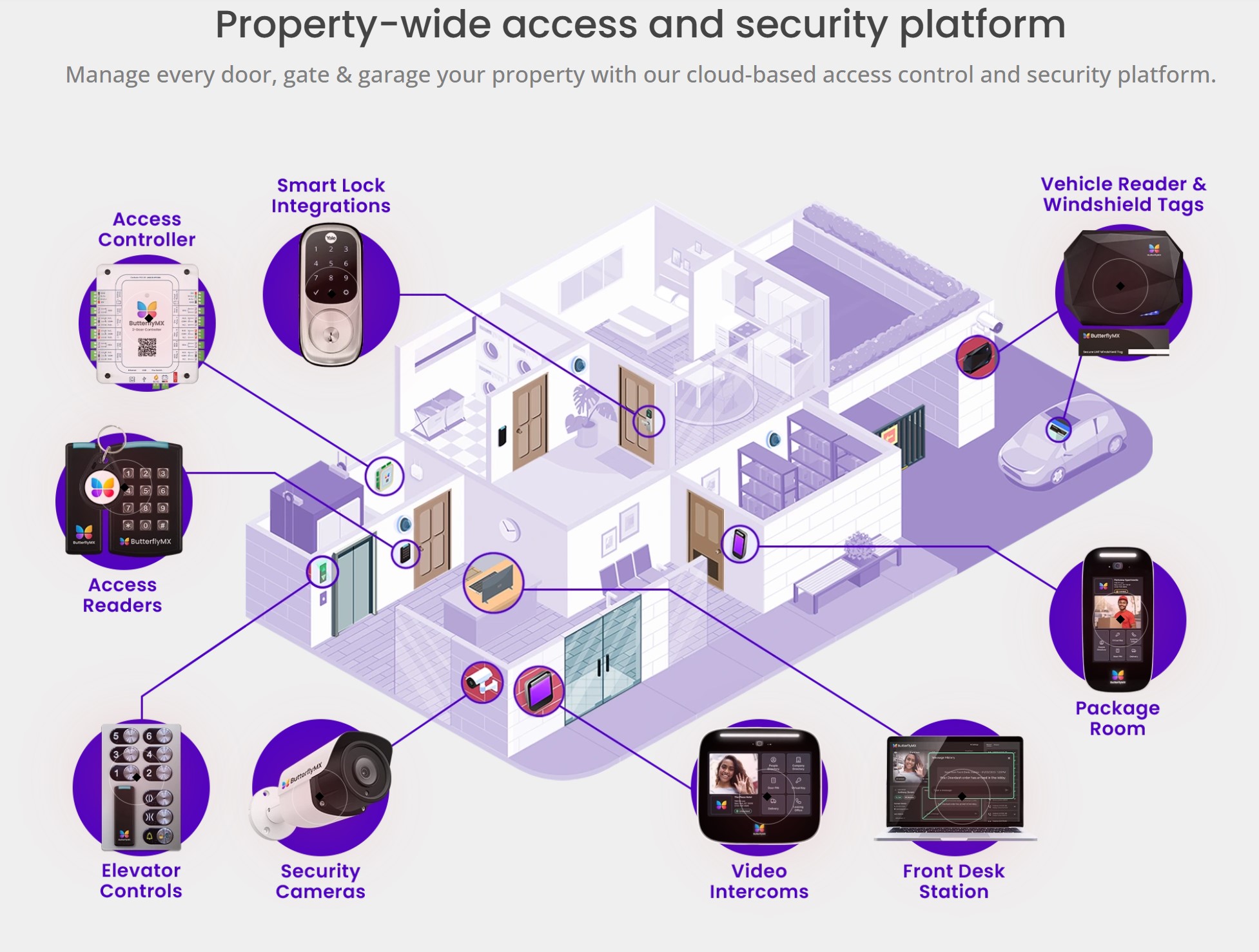

Cloud-based access control for property-wide door, gate, and garage management. Controller + 3 reader options.

Components:

• Access Controller — 5.9" H × 4.7" W × 1.3" D
• Keypad Reader — 5.1" H × 3.2" W × 0.7" D
• Single Gang Reader — 5.1" H × 3.2" W × 0.7" D
• Mullion Reader — 5.1" H × 1.7" W × 0.7" D
• Vehicle Reader — 7.2" H × 9.1" W × 1.4" D

Entry Methods: Smartphone app, PIN codes, fobs, keycards, QR codes, telephone.

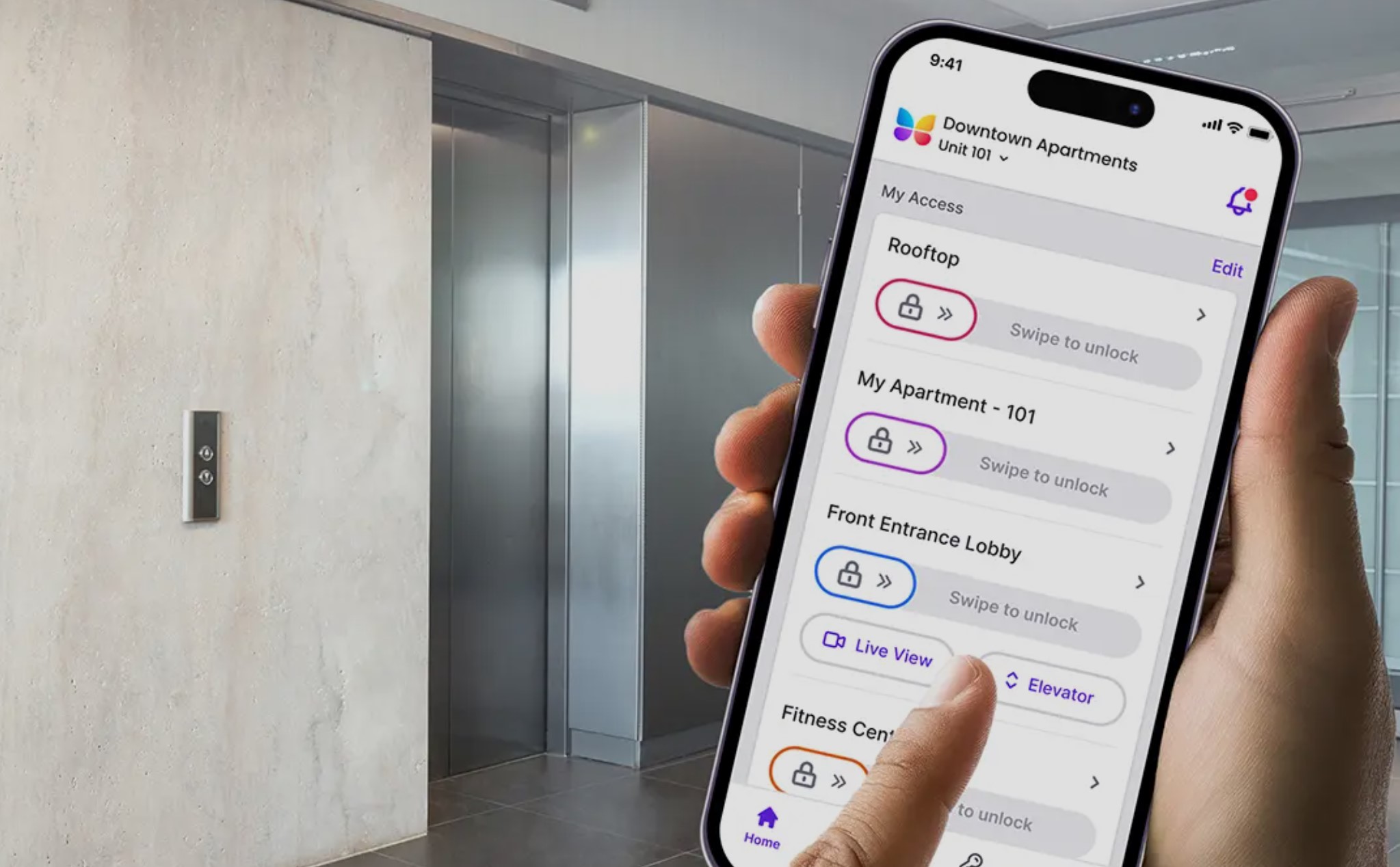

Unlock key-fobbed elevators from the mobile app. Floor-specific access keeps all other floors secure.

Integration: Works with Video Intercoms, Keypads, and the ButterflyMX OS dashboard.

Installation: Carried out with licensed and insured trade partners for full BC compliance.

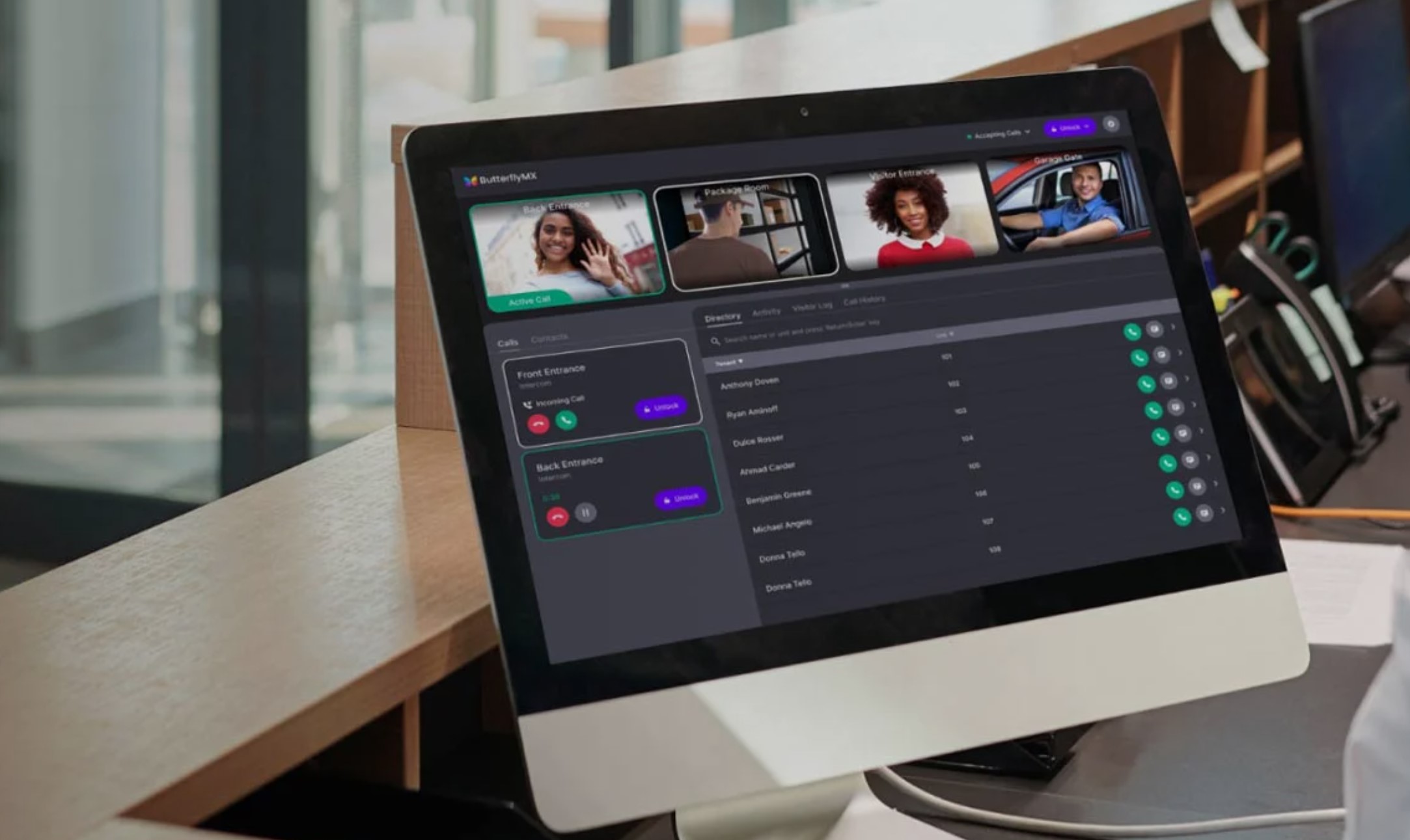

Software-based front desk management. Live video, two-way communication, visitor authentication, and single-button access.

Platform: Any internet-connected Windows or Apple computer. No dedicated hardware required.

Multi-Property: Toggle between buildings to manage your entire portfolio from one interface.

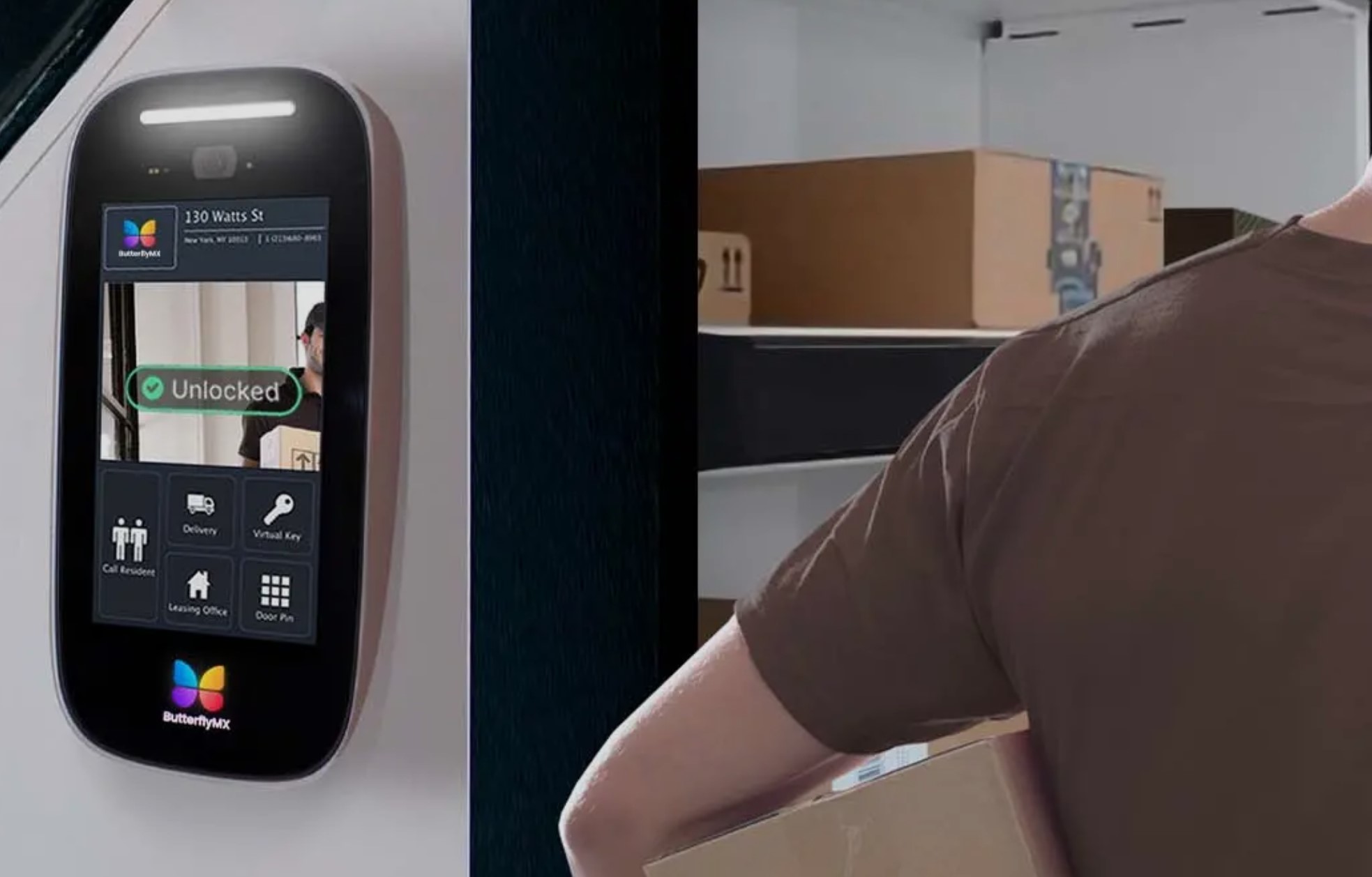

Automated package delivery management. Carriers get secure one-time access, residents receive instant pickup notifications.

How It Works: Courier enters via ButterflyMX panel → resident gets push notification → self-service pickup with unique code.

Dashboard: 365-day audit trails, timestamped photos of every delivery and pickup, PMS integrations.

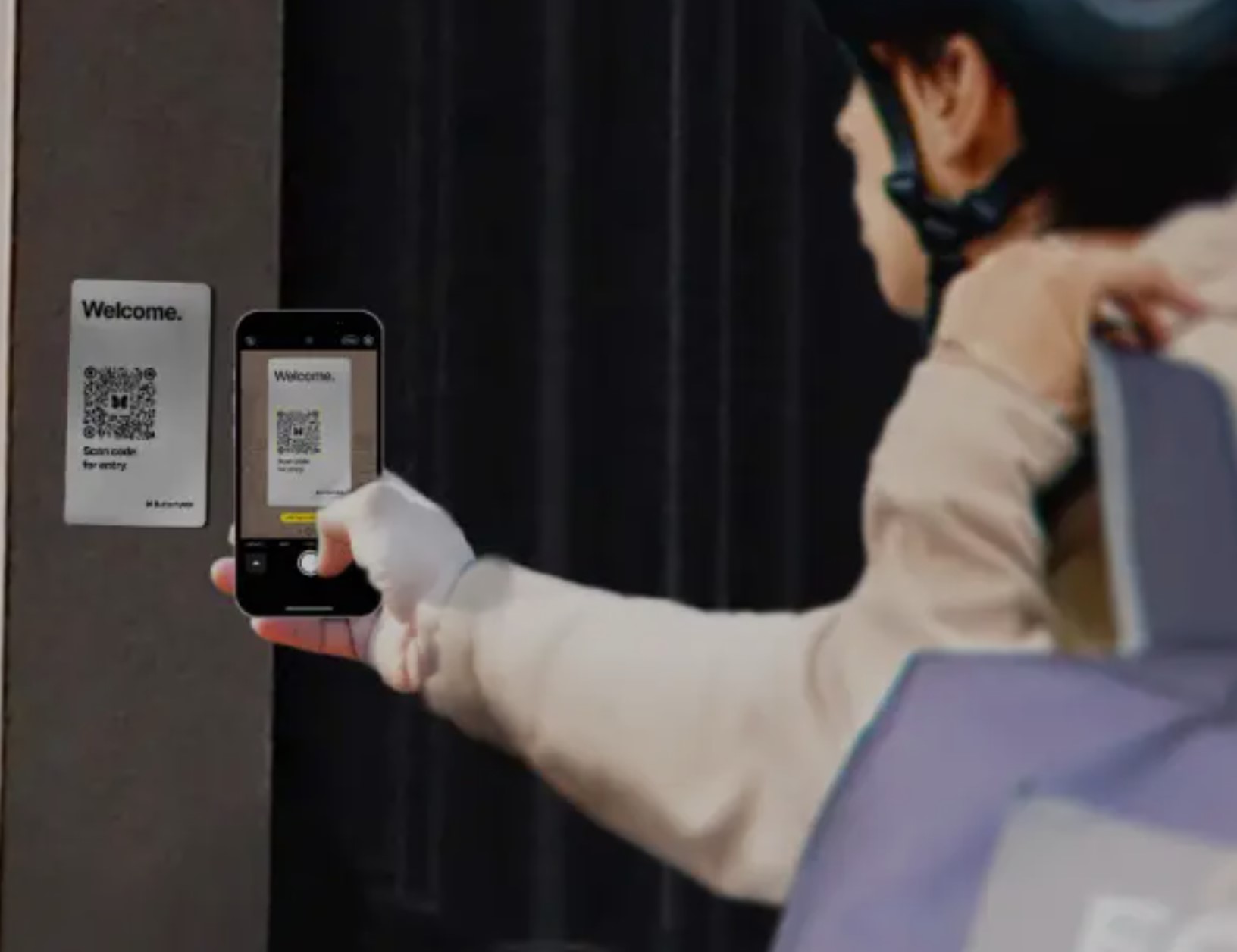

Reduce upfront hardware and installation costs with scannable QR codes for an entirely smartphone-based property access experience. No app download needed for visitors.

Key Features: Web-based intercom, property directory, one-way video with two-way audio, swipe-to-open for residents, geofencing, 5-minute session limits, 365-day audit trails with timestamped photos.

Plaque: Anodized aluminum (dark grey) or brushed stainless steel (silver). Weatherproof, UV/corrosion-resistant, scratch-resistant ≥ 9H.

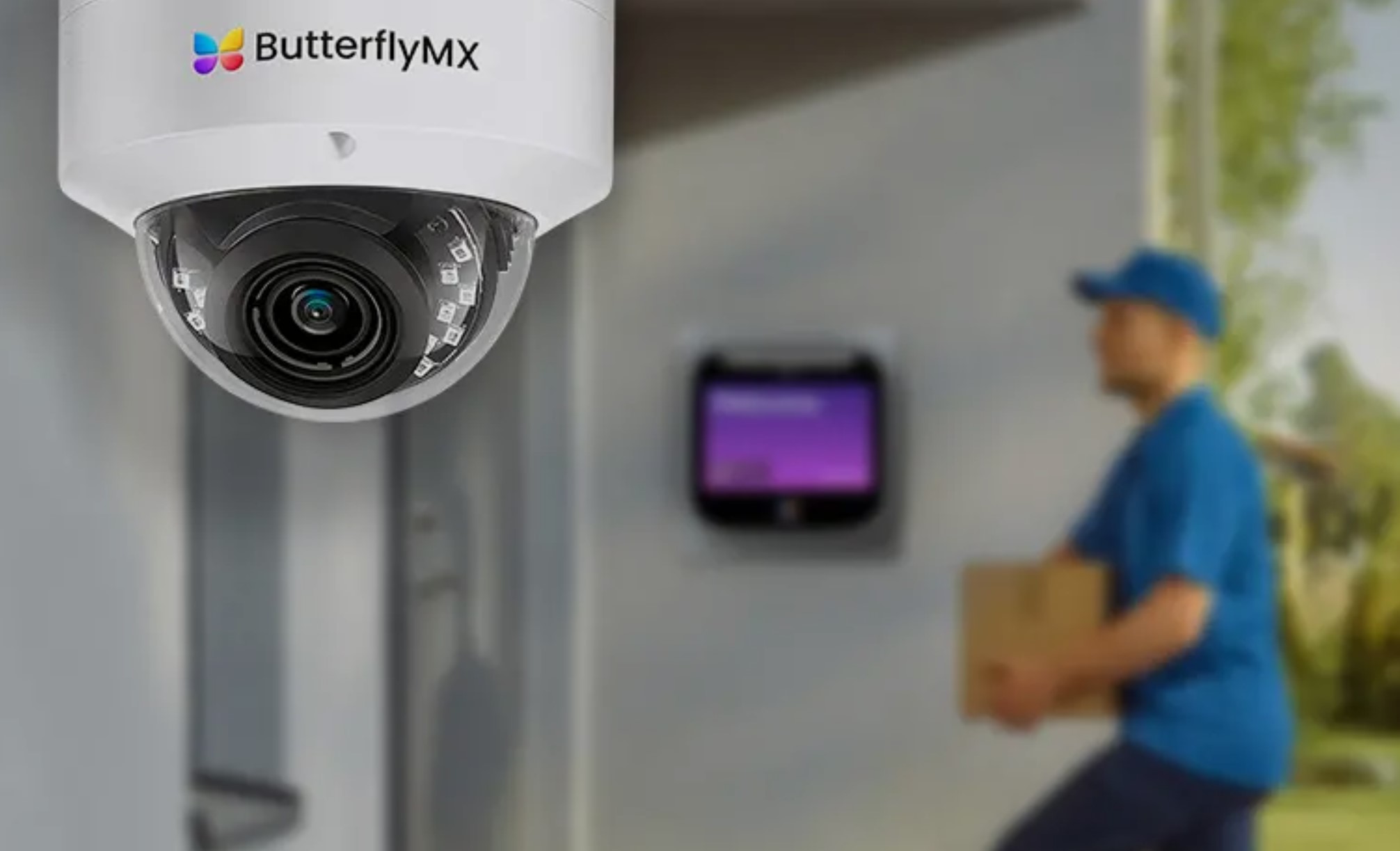

Dome and bullet security cameras with 6MP resolution, 1080p Ultra HD streaming, and infrared night vision up to 95 ft.

Models: Dome (3.7" × 4.3" × 4.3", IP66 + IK10) and Bullet (2.5" × 2.7" × 7.9", IP66). Aluminum alloy housing, PoE+ powered.

Dashboard: Up to 40 live streams, 90-day cloud storage, video filtering by access events.

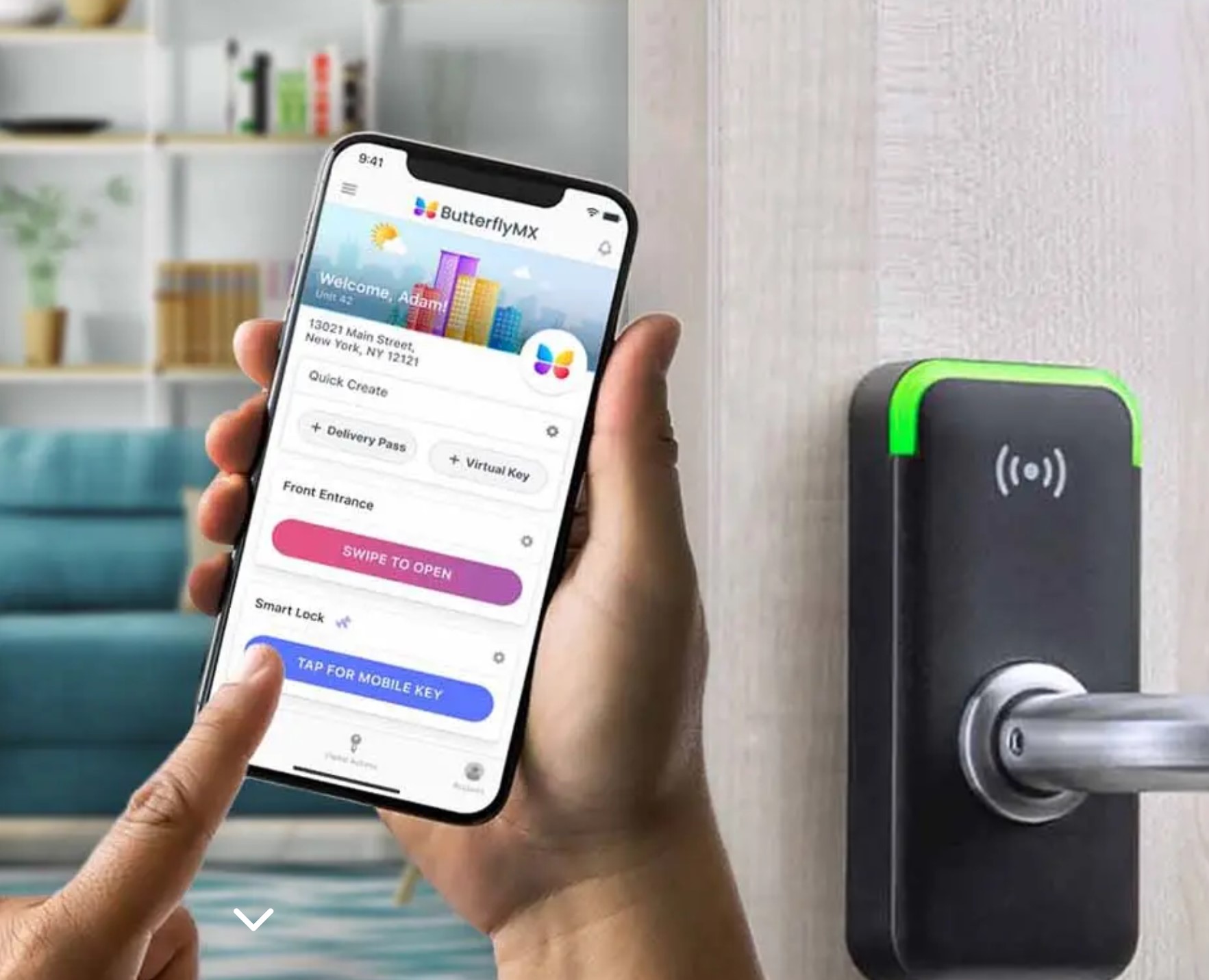

Integrates with leading smart lock brands. One app from building entrance to individual apartment unit.

Brands: Schlage, Yale, Salto, Dormakaba, Kwikset, August, HID, Allegion.

Entry: Door PINs, Bluetooth, Swipe-to-Open, and key fobs. Offline BLE support.

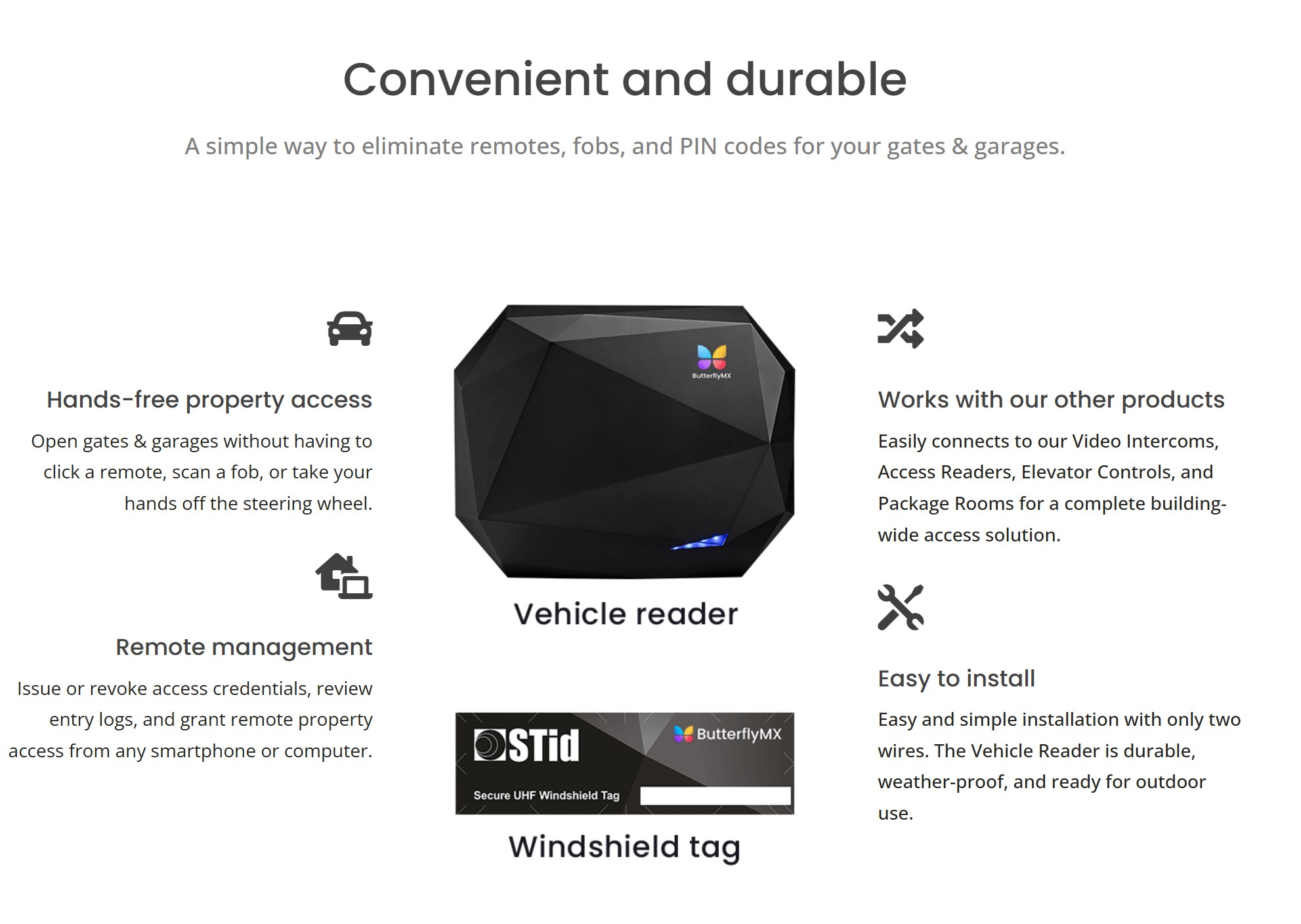

Hands-free gate and garage entry. IP66/IK10 rated vehicle reader with 20ft range and passive UHF RFID windshield tags.

Entry: Windshield Tag (auto-scan) or ButterflyMX mobile app (swipe to open).

Specs: 7.2" H × 9.1" W × 1.4" D. 12 VDC, 900 mA. Two-wire installation.

ButterflyMX Video Intercoms let residents see and speak with visitors, then unlock doors, gates, and garages from their smartphone. No in-unit hardware needed.

4 Models:

• 8" Surface — 11.5" H × 5.6" W × 2.4" D
• 8" Recessed — 15.3" H × 8.7" W × 2.4" D
• 12" Surface — 12.4" H × 11.6" W × 2.4" D
• 12" Recessed — 13.3" H × 13.6" W × 2.4" D

Key Features: Video calling, resident directory, QR visitor passes, 6-digit PINs, fobs/keycards, audit trails (365 days), PMS integrations.

Commercial security gates provide operational and economic benefits — increased security, controlled access, boosted curb appeal, and reduced insurance costs.

Available Gate Types:

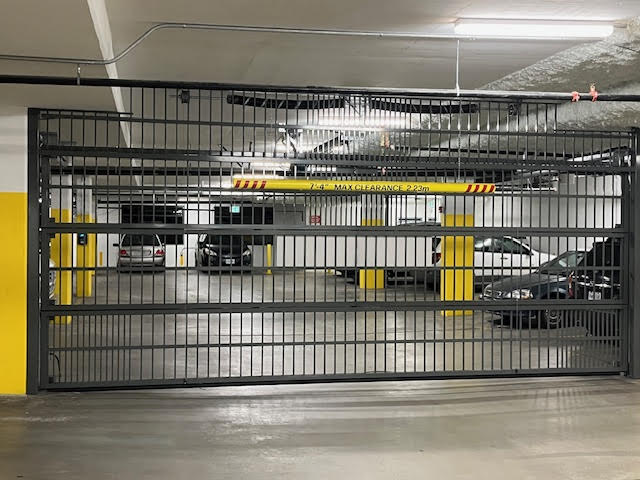

• Parking Security Gates — Open picket or fully meshed gates for condominiums, office buildings, and parkades. Built for high-cycle requirements.
• Swing Gates — Functional and aesthetic perimeter security in structural steel, chain link, or aluminum. Ideal for farms, equestrian facilities, and manufacturing.
• Sliding Gates — Space-saving design in bottom track or cantilevered systems. Available in aluminum, chain link, and steel for large-width openings.
• Bi-Folding Gates — Quick open/close for high-traffic operations with openings up to 6 metres. Trackless system available.
• Vertical Pivot Gates — No overhead restrictions for large vehicle access. Rotates 90° upward — no tracks to keep clear of snow.
• Barrier Arms — Horizontal-to-vertical lift for traffic flow control. Perfect for monitored entrances and exits.

Materials: Aluminum (low maintenance, corrosion resistant), Steel (impact resistant, heavier duty), Wrought Iron (durability with visual appeal).

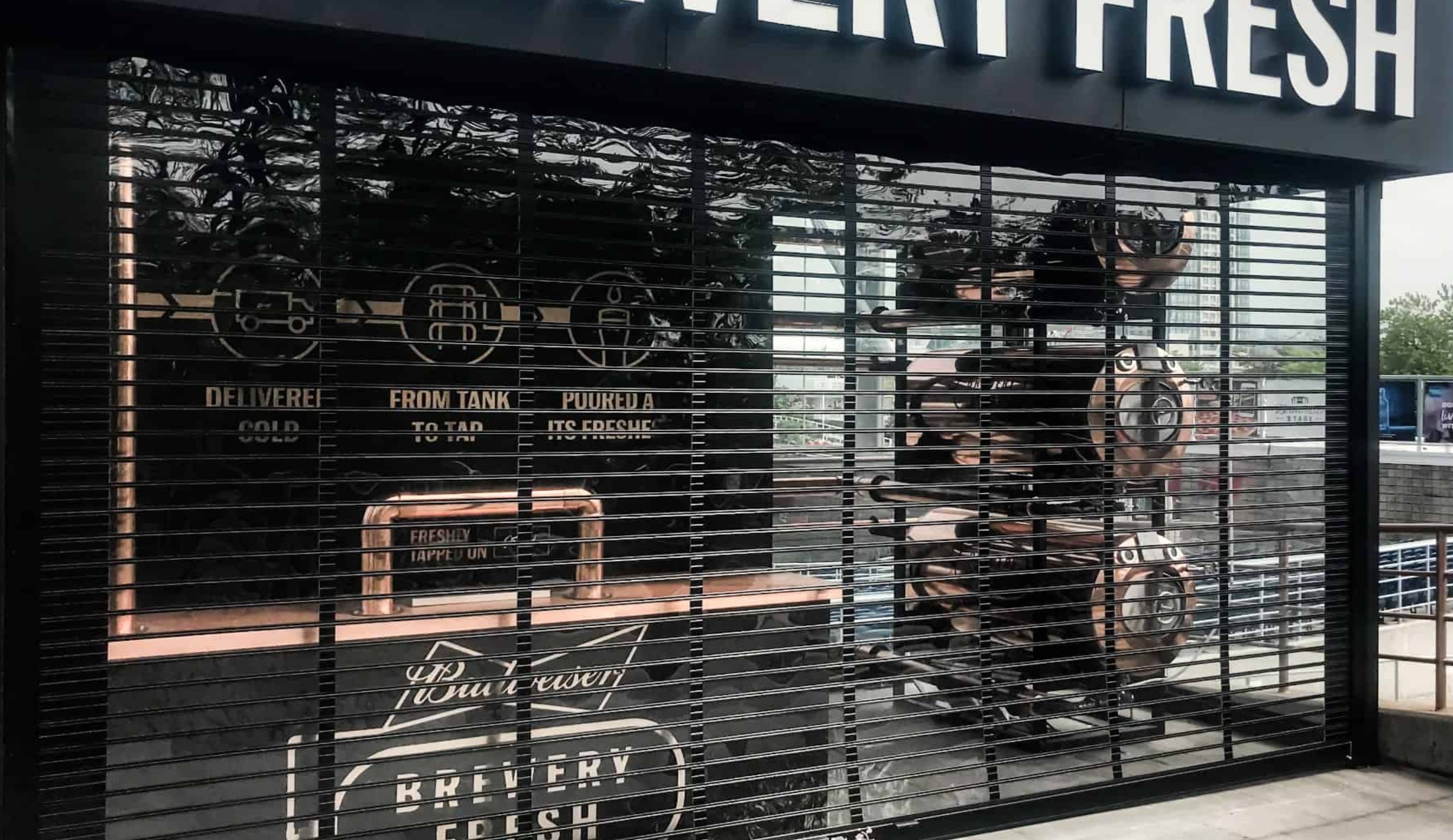

Dynamic Closures Lift Ready Rolling Grilles are the smallest, lightest, and easiest to install overhead rolling doors on the market. Curtain arrives pre-rolled on the barrel — just lift into place.

5 Lift Ready Models:

• Vortex — Solid interlocked aluminum panels
• Ventana — Perforated aluminum in aluminum frame
• Pristine — Polycarbonate panel in aluminum frame
• Labyrinth — Aluminum rod & link, brick pattern
• Portcullis — Aluminum rod & link, straight pattern

Features:

• Compact 15" square header plate
• Manual (charge handle / counterbalance) or LiftMaster motorized
• Optional hood and fascia for clean look
• Bottom bar guides with integrated smart locks
• Multiple anodized and powder coat color options

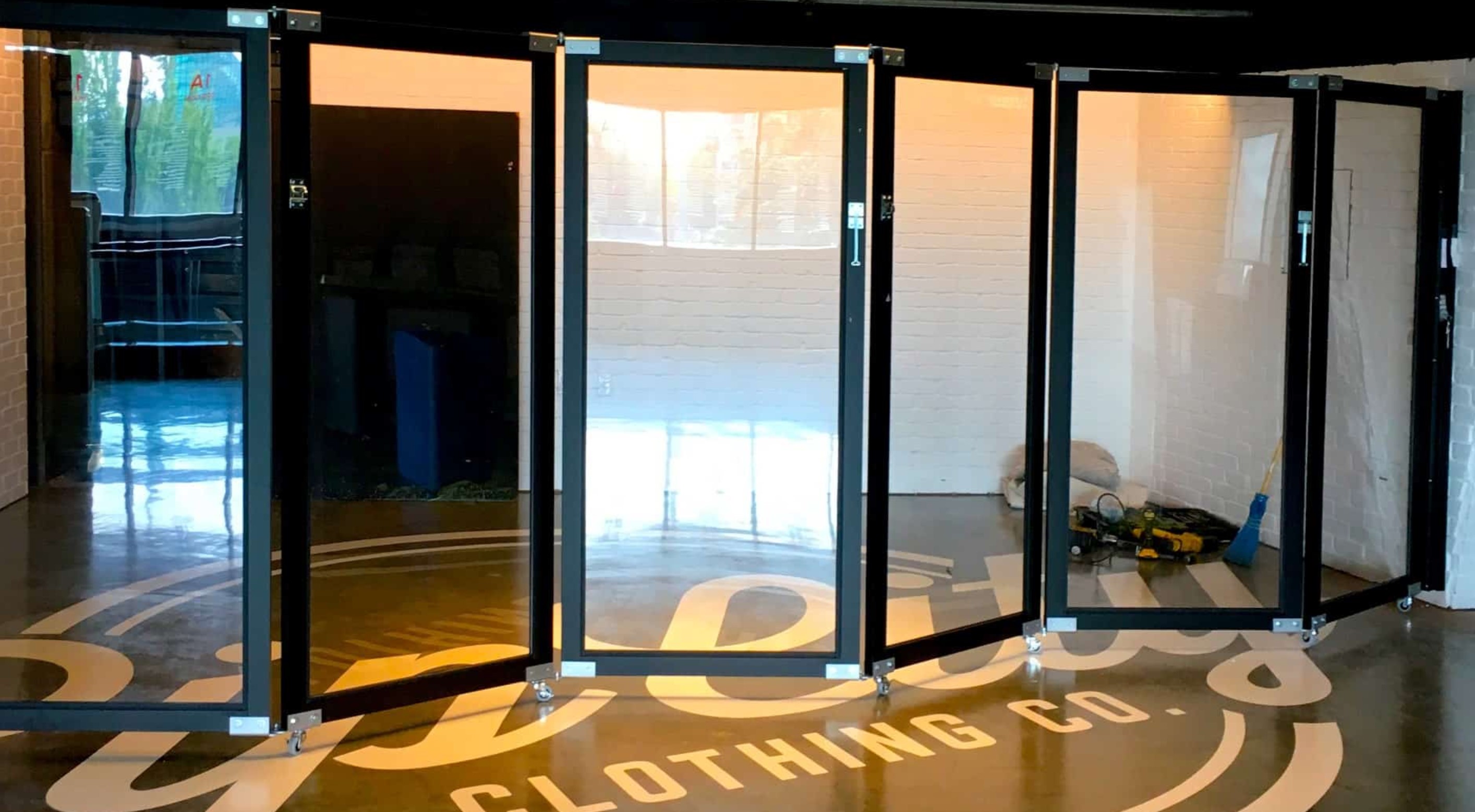

Dynamic Closures Roll and Fold crowd control barriers provide effective, attractive crowd management without permanent installation. Fully self-supporting on heavy-duty lockable casters — no track, header, or floor holes needed.

Available Models:

• RF Paravent — Perforated steel panels
• Rod Link — Aluminum rod and link straight pattern
• RF Prestige — Polycarbonate panel in aluminum frame

Features:

• Optional locking posts (Wall Channel, Hookbolt, Mounting Tubes, Bi-Part)
• Anti-sway latches for safe transport
• Easy-change cylinder locks
• Non-marking hard rubber casters
• Multiple anodized and powder coat color options

Dynamic Closures Mini Roll Up shutters protect display cases, counters, kiosks, windows, and smaller openings. The shutter disappears into a sleek, fully-enclosed header when not in use.

6 Models Available:

• RF55 — Roll formed aluminum slat with foam core
• EX40 — Solid extruded aluminum slats
• EX60 — Solid extruded aluminum panels
• EX59-V — Aluminum slats with central vent opening
• EX59-P — Perforated aluminum slats
• RF40 — Roll formed aluminum slat with foam core

Features:

• Tamper-proof fully-enclosed compact header
• Internal or external installation
• Ultra-quiet in-axle motorized operation
• Multiple locking options including SFIC master key
• Stackable / connectable with synced motorization

Dynamic Closures side folding security doors and grilles provide premium security for commercial spaces. Available in three series — Elite, Slim Line, and EZ — with options in tempered glass, aluminum rod & link, polycarbonate, perforated steel, and solid aluminum.

Key Features:

• Patented continuous hinged construction — no soot buildup
• Custom curves: 90°, 120°, 135°, 150° and custom angles
• Emergency egress "door within a door" — ADA compliant
• Optional 850 lb Maglock electromagnetic locking
• No bottom track required — only 1-5/8" headroom
• Up to 28 feet tall, unlimited width
• Pre-assembled pocket door system (EZ Series)
• Multiple finishes: anodized, bronze, champagne, powder coat

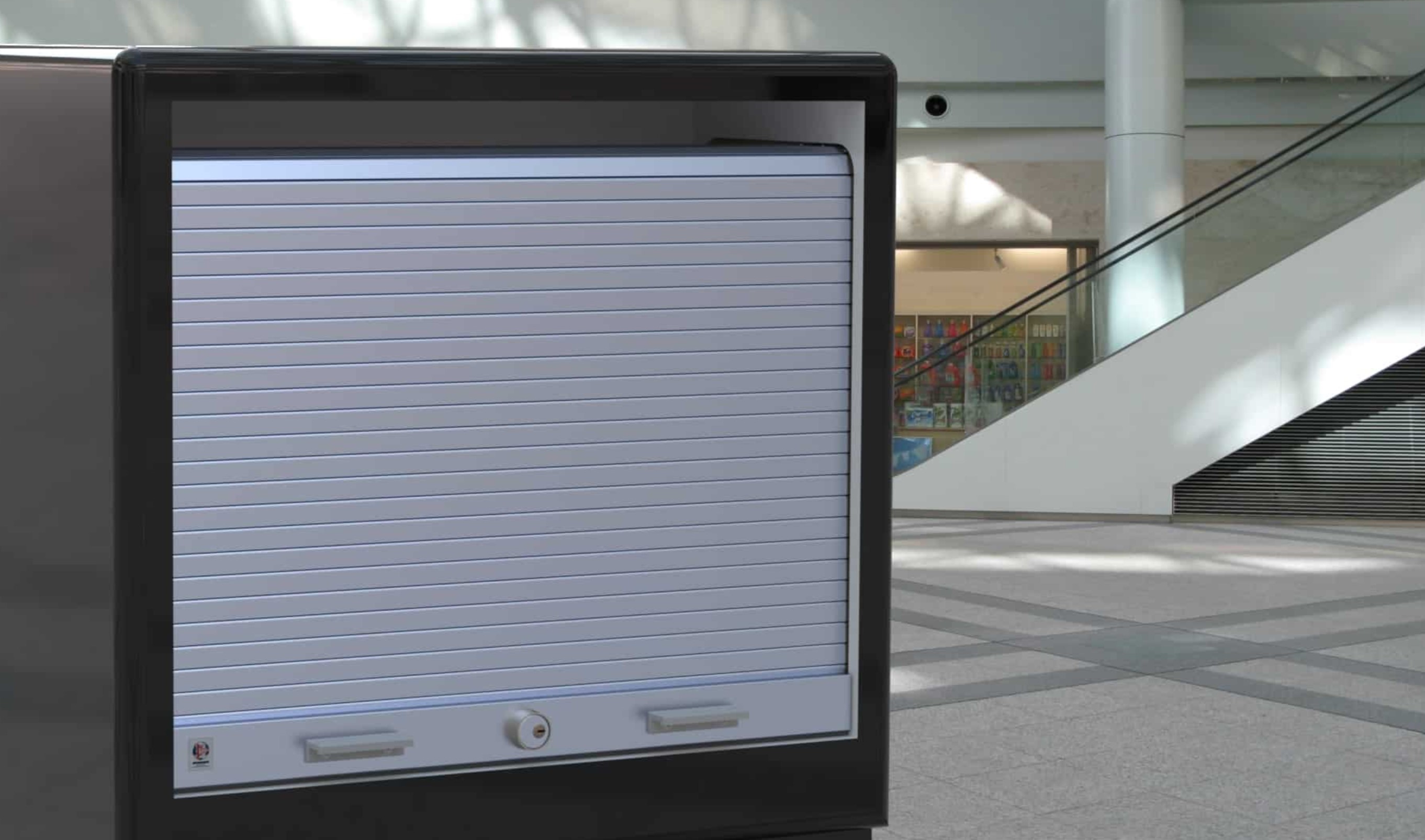

Dynamic Closures Tambour Shutters provide worry-free security for cabinets in pharmacies, mall kiosks, AV and display cases. No bulky barrel or counterbalance — the shutter slides in guide tracks built by the cabinetmaker.

CTS-M Model:

• 7/8" high solid aluminum panels
• Max width of 4 feet
• Manual push-up operation
• Guide tracks built into cabinet by cabinetmaker

Options:

• 3 materials: polycarbonate, mini aluminum slats, V-slat solid aluminum
• 3 locking systems: throw bolts, hook bolt + channel, hook bolt + recessed plate
• SFIC master key compatible
• Multiple anodized and powder coat finishes

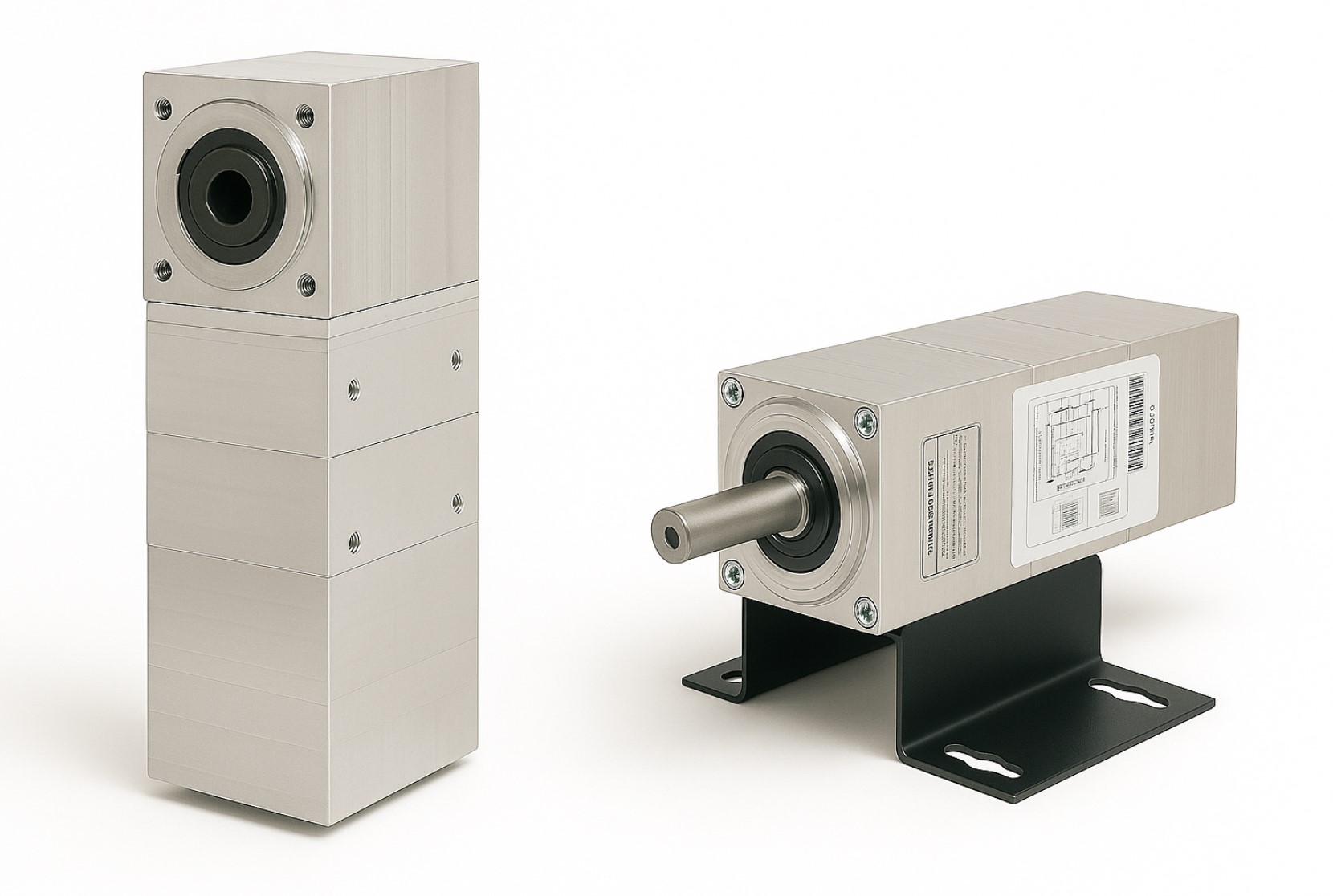

GDI industrial garage door operators are built for high-cycle reliability in the harshest environments. Featuring brushless direct-drive motors — no chains, no belts, no compromises — with sealed, weather-proof construction and intelligent control systems.

Key Features:

• Brushless direct-drive motors — no wearing parts, dramatically longer service life
• IP69K sealed against water, dust, and corrosion
• Certified to operate down to −40°C
• Optional 36V DC battery backup (50–200 cycles per charge)
• Whisper-quiet operation ideal for mixed-use buildings
• Chemical resistant materials and sealed enclosures
• Ultra-low profile motors for tight headroom applications
• Smart control with soft start/stop and overload protection

Rated for over 1,000,000 cycles.

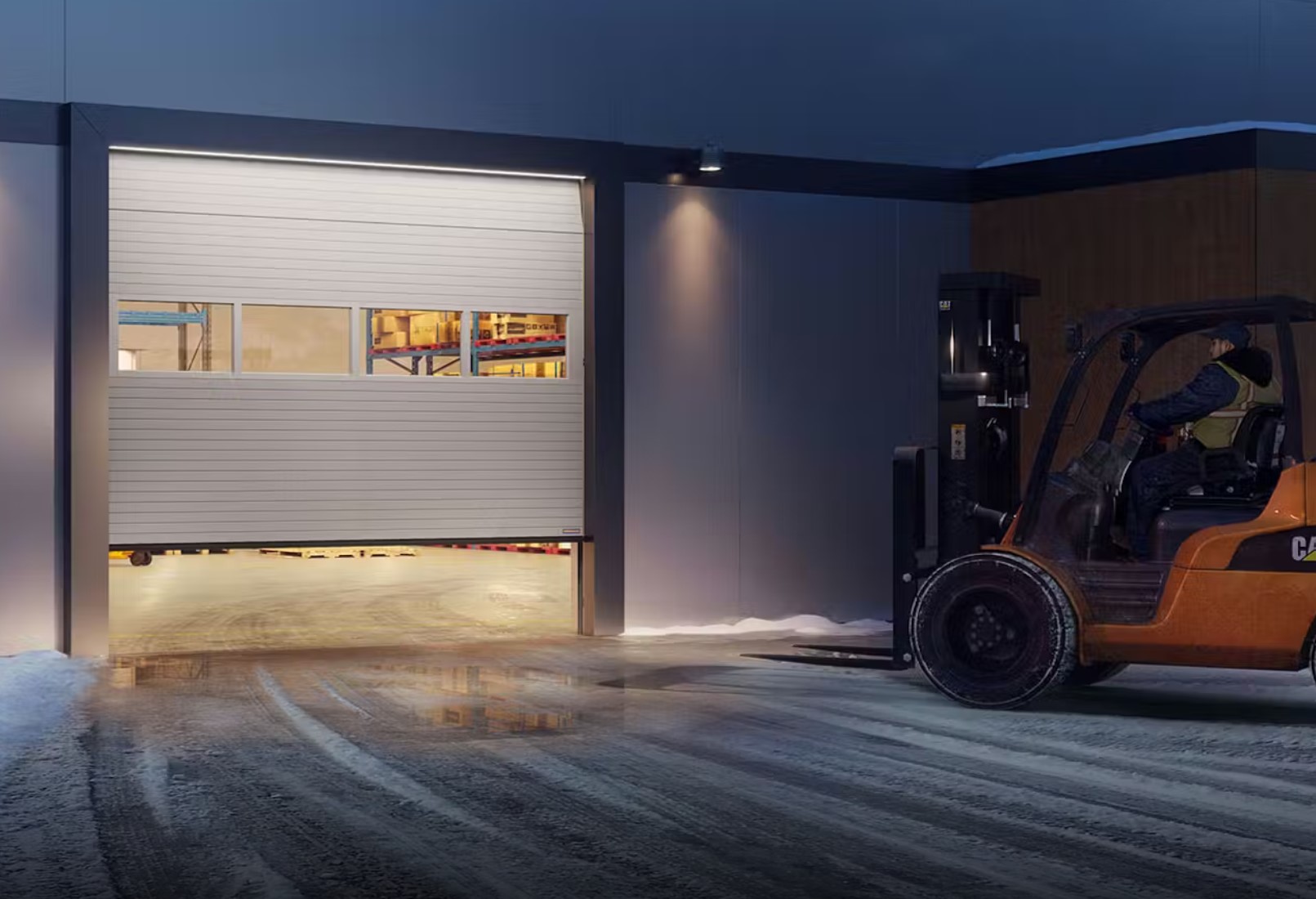

Hörmann North America carries on the commercial overhead sectional door tradition started in Germany decades ago. Whether plans call for pan or sandwich door designs, there is a model to match any specification.

Trend-Setting Features:

• Proprietary Polyurethane Insulation — Hörmann's exclusive blend for superior thermal performance and energy efficiency.
• FingerGuard™ Section Joints — Pinch-resistant design for enhanced safety at every section joint.
• Galaxy Paint System — Exclusive special panel coating process for exceptional durability and finish quality.

In 1976, a new factory was founded in Brockhagen, Germany, which kicked off the industrial production of commercial overhead sectional doors at Hörmann — a tradition that continues today in North America.

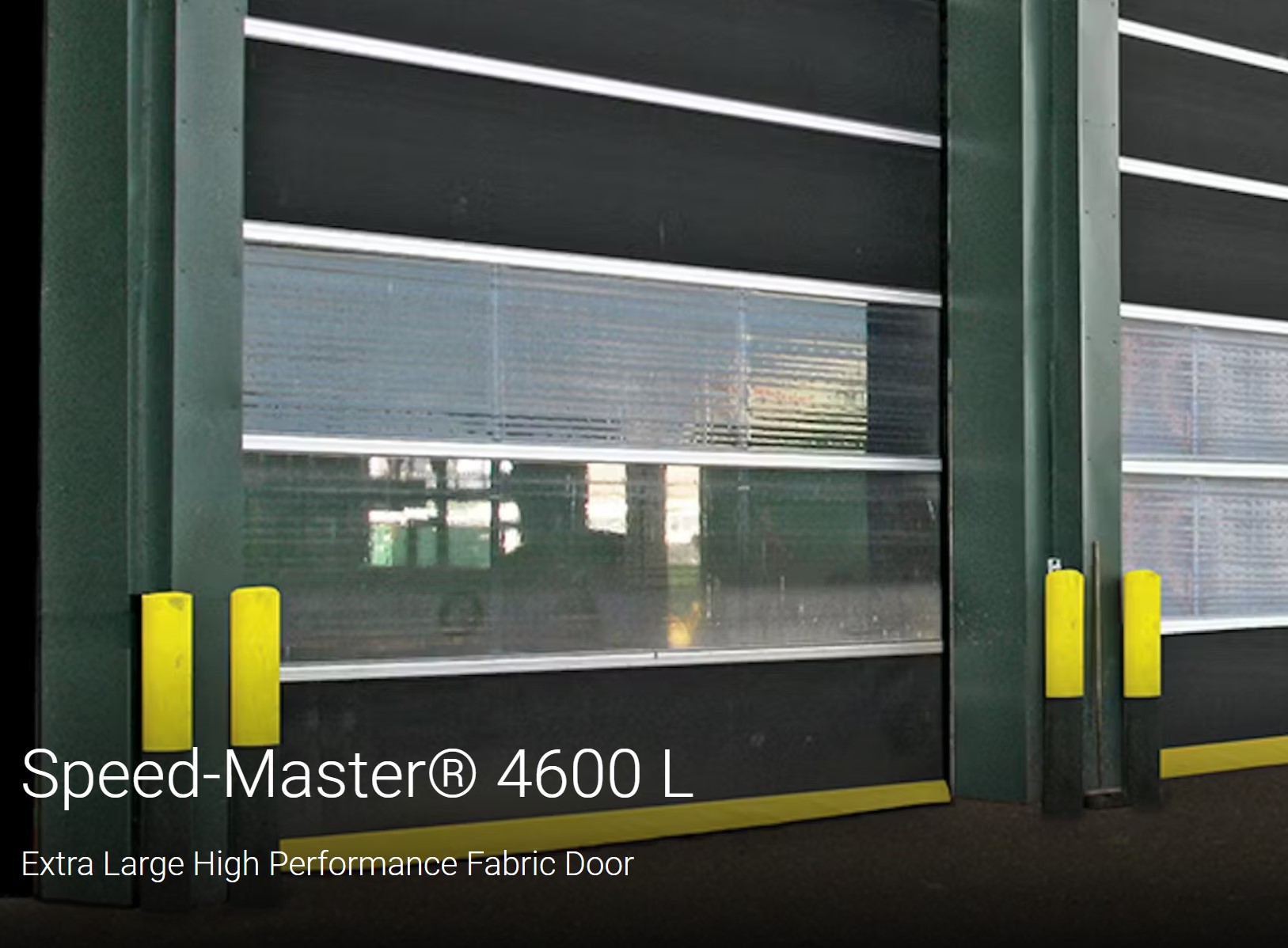

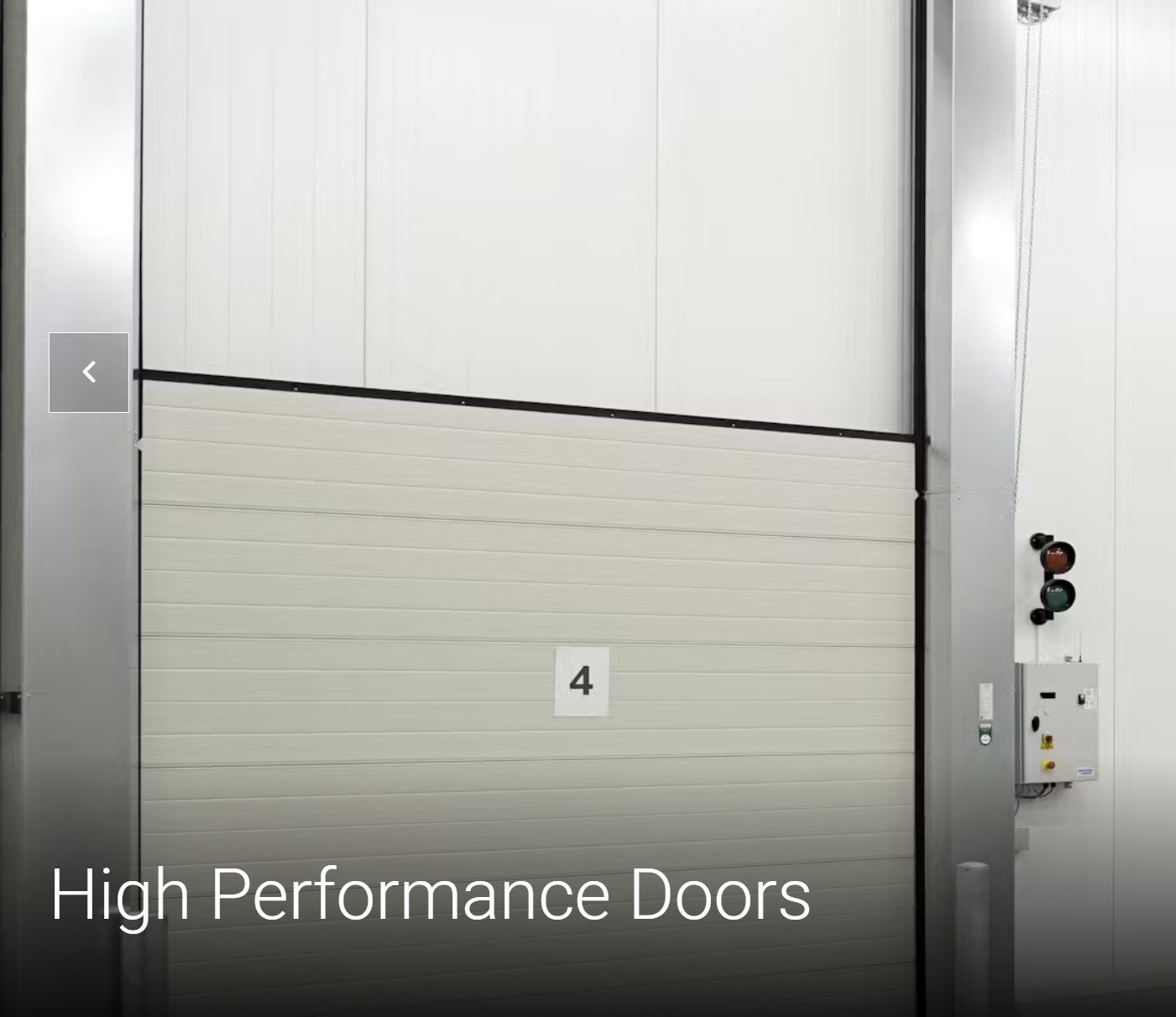

Hörmann offers high-performance rigid, rubber, and fabric doors specially designed for many markets and applications. Available in a wide range of sizes and with numerous customizable options, these doors increase efficiency at high-cycle openings.

Door Types:

• Rigid Doors — Insulated rigid panel construction for environments requiring thermal separation and security.

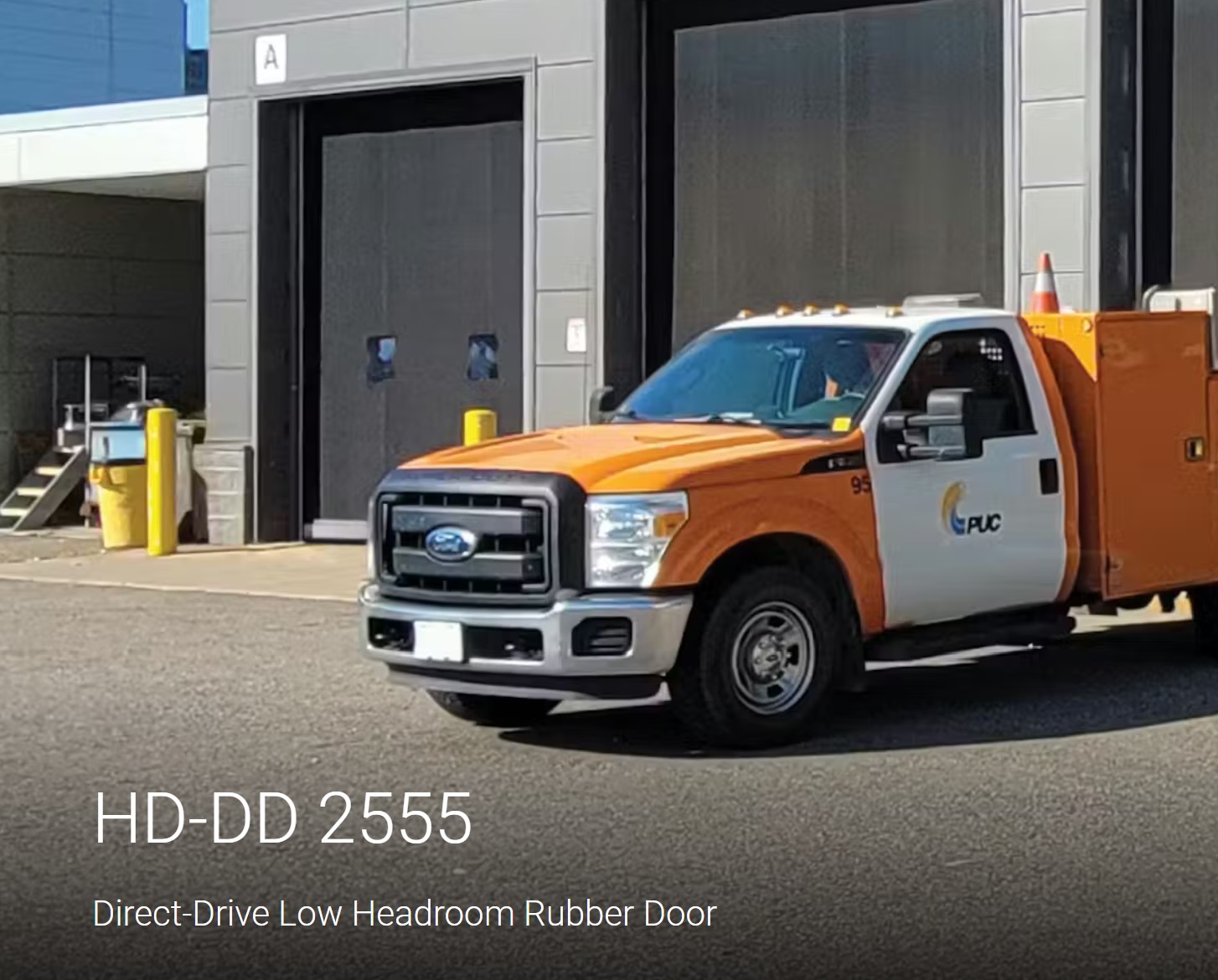

• Rubber Doors — Flexible rubber curtain doors for high-traffic areas with frequent impacts.
• Fabric Doors — Lightweight, high-speed fabric doors for maximum cycle performance.

From retail automotive and emergency services to parking garages, cold storage, and waste management — Hörmann has an application-specific solution.

Since 1935, Hörmann has been passionate about technology and quality. German engineered and American made, Hörmann residential garage doors combine decades of European innovation with North American manufacturing.

Exclusive Features:

• CFC & HCFC-Free Insulation — 100% environmentally friendly polyurethane insulation for superior thermal performance.
• FingerGuard™ Panels — Pinch-resistant section joints that protect fingers during operation.
• Galaxy Paint System — Exclusive multi-layer paint process for long-lasting finish and curb appeal.
• SilentDrive® Opener — The perfect match for Hörmann garage doors with whisper-quiet belt drive operation.

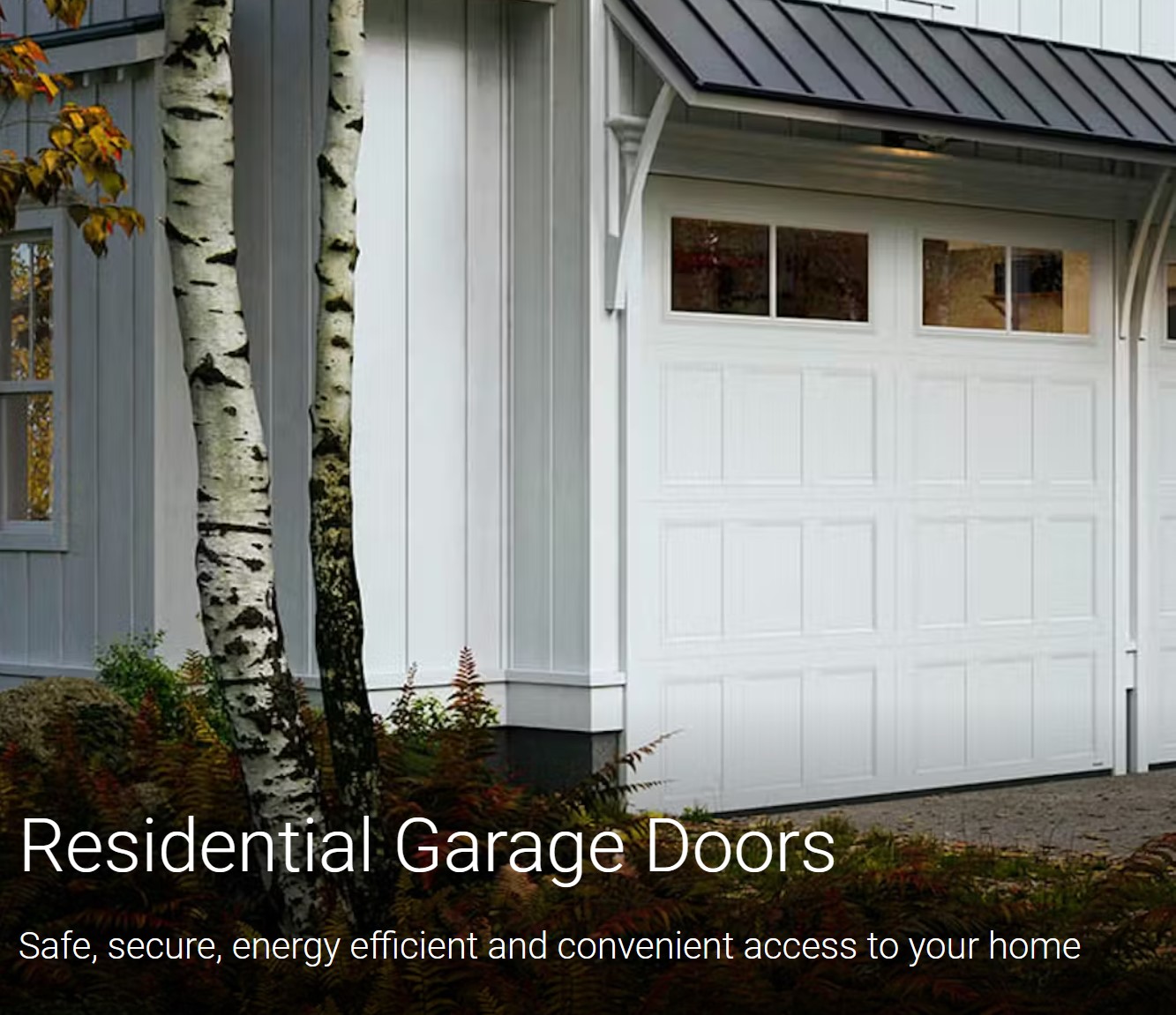

Available in numerous classic and contemporary styles — from value/builder, better, and best levels of thermal rating, customizations, maintenance, and luxury level.

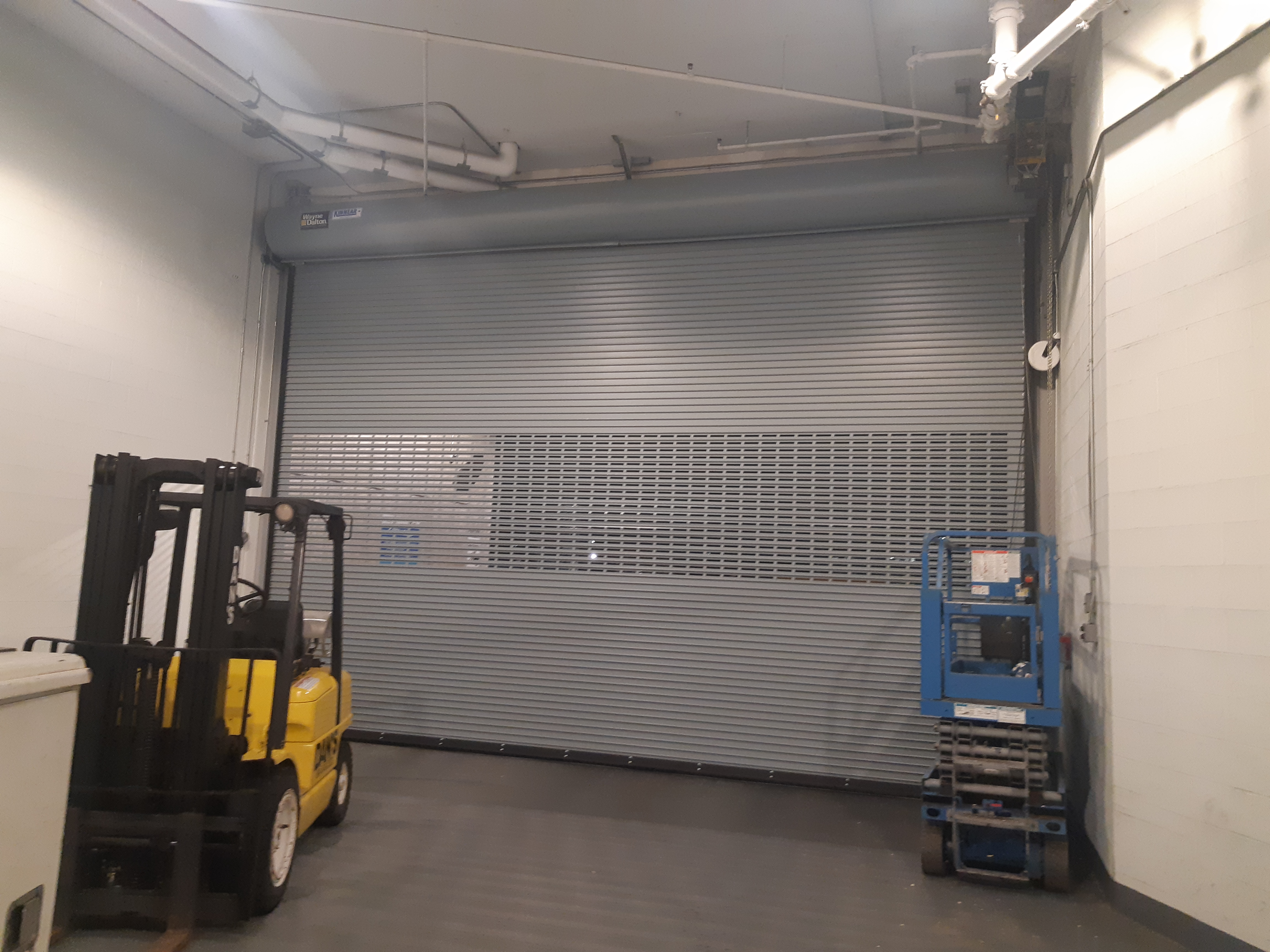

Hörmann Steel Ranger™ Springless Rolling Steel Doors

The Steel Ranger™ series is Hörmann's modern alternative to traditional rolling steel doors. Engineered without torsion springs, these direct-drive doors deliver lower maintenance, higher cycle life, and compact installation footprints.

Models:

• Steel Ranger 9500 LS — Low-speed springless door. Opens at 8 in/sec. Max size 26' × 16'. Ideal for standard-cycle applications replacing traditional rolling steel.
• Steel Ranger 9000 L Elite — High-speed springless door. Opens at up to 45 in/sec. Max size 24'6" × 14'. Built for high-cycle locations like parking garages, warehouses, and automotive facilities.
• Steel Ranger 9000 L — Original high-speed springless model with 500,000-cycle warranty. Built for demanding high-cycle environments.

All models feature insulated Decotherm® 29-gauge steel panel slats with polyurethane core (R-8.0), built-in light curtain safety, compact aluminum guide tracks requiring only 4" sideroom, and a 5 & 2 year warranty (5 years on operators with VFD, 2 years on mechanical/electrical components).

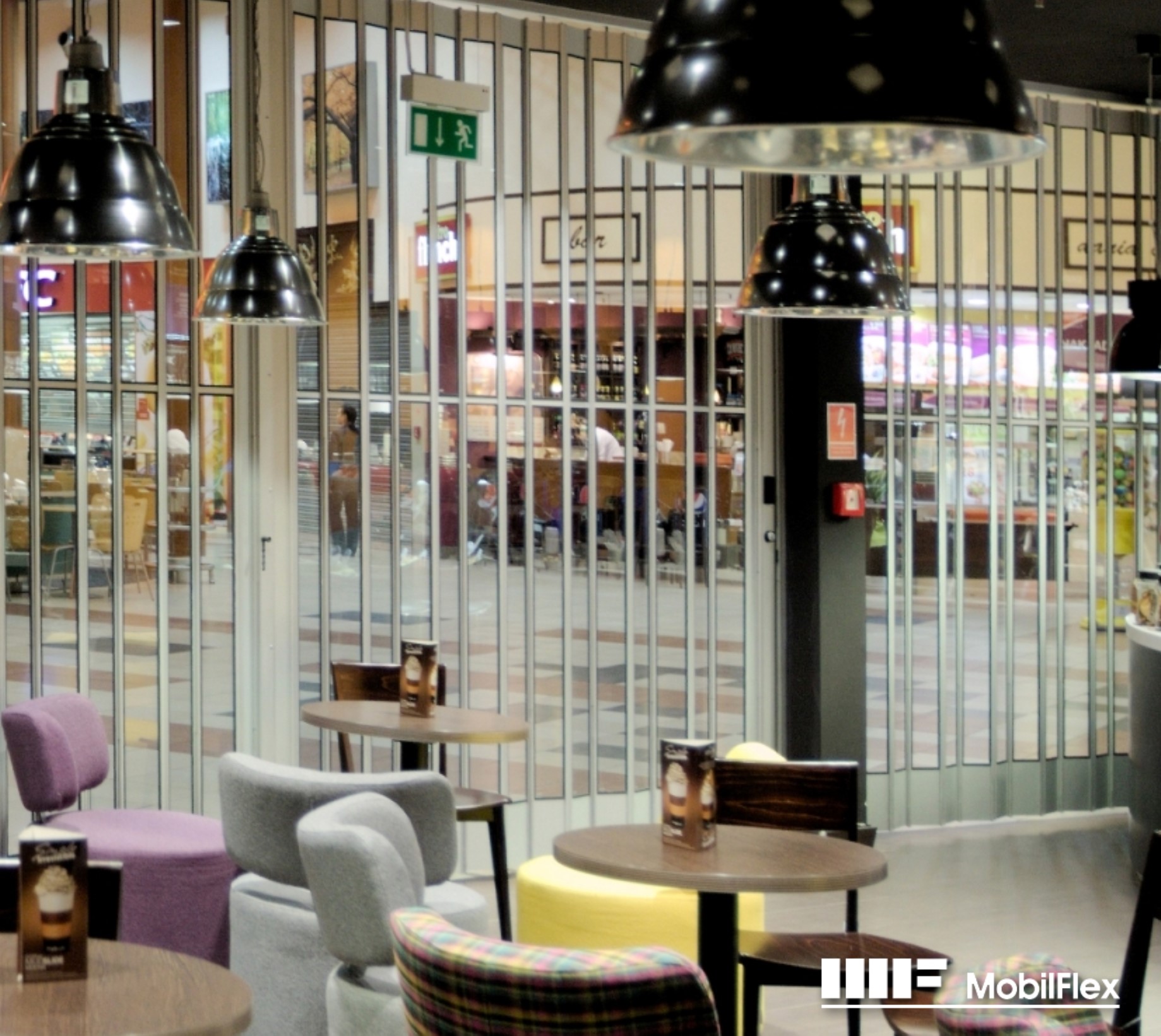

MobilFlex folding closures provide side-folding security for storefronts, banks, schools, and commercial spaces. 9 models from tempered glass to opaque solid aluminum.

Models:

• ROYAL — Tempered glass for maximum visibility
• IMPACT — Polycarbonate (1/16" thick) for impact resistance
• AEROFLEX — Micro-perforated steel for airflow and visibility
• SYSTEM S-12 / S-525 / S-126 — Open-style aluminum
• GLOBAL — Opaque solid aluminum for total privacy
• CONCEPT 1212 / 99 — Modern open-style designs

Features:

• Custom track and curves — straight, L-shaped, U-shaped
• Bi-part and swing-out egress doors
• Compact stacking / pocket arrangements
• Coast-to-coast North American installation

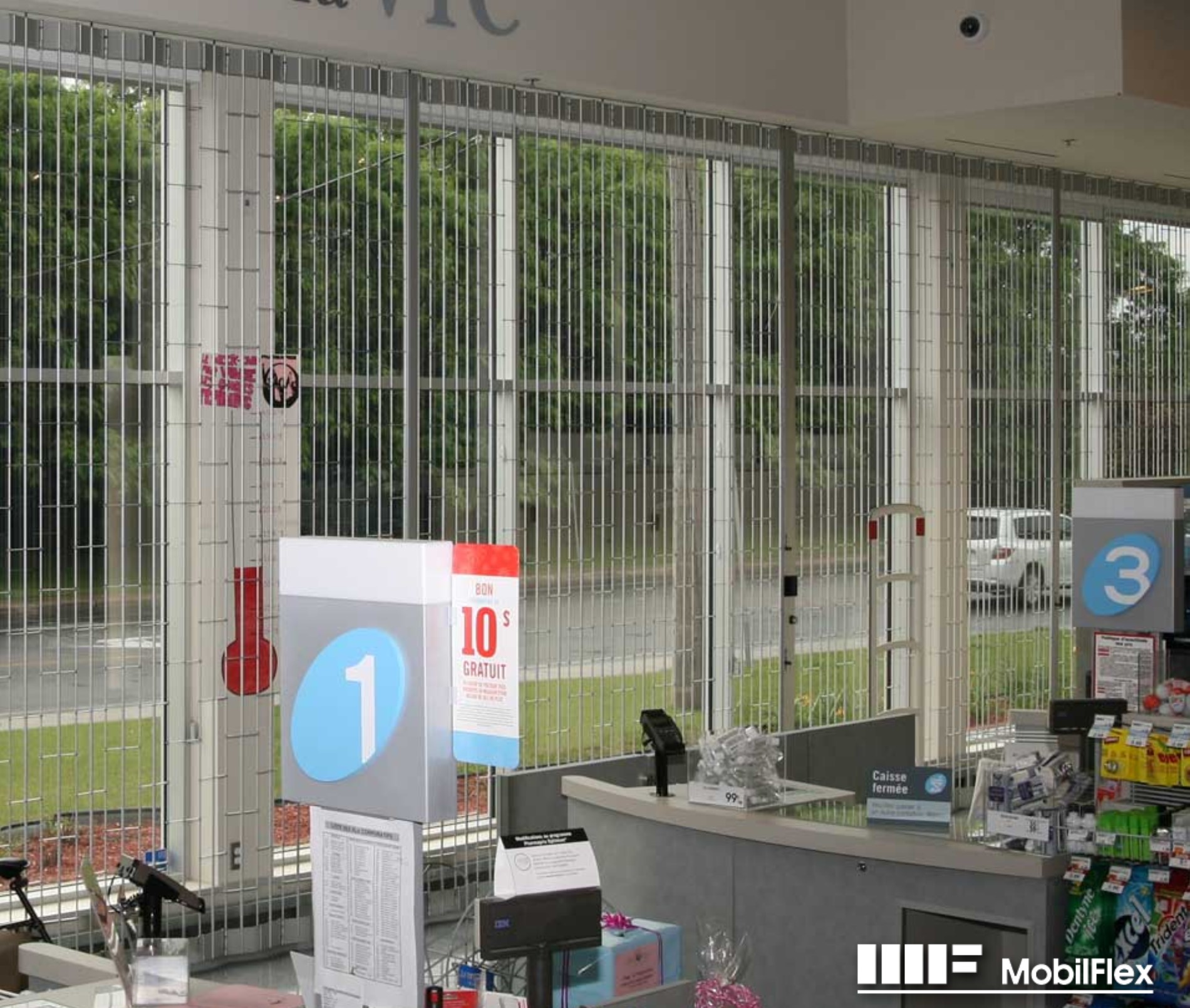

MobilFlex window protection grilles are smart, cost-effective solutions for protecting windows. Fully retractable, visibly secure, and pleasingly practical.

Two Series:

• Standard — Overhead track only, no floor track needed
• Secure — Enhanced security with bottom track and dust-proof floor sockets

Features:

• Fully retractable — open daily or leave in place
• Unobstructed view of merchandise when deployed
• Insurance-grade security
• Blends with existing décor
• CAD and PDF technical drawings available

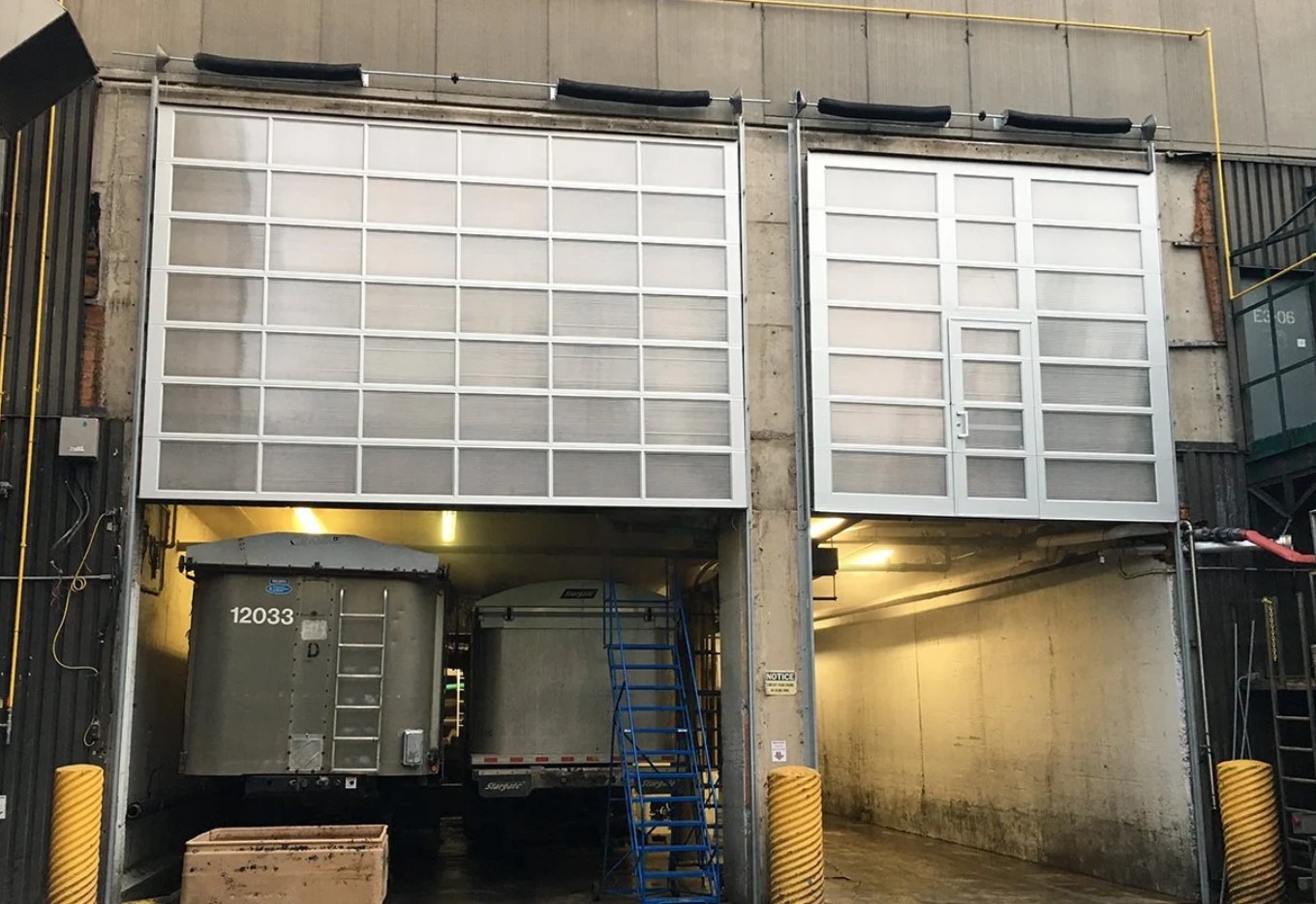

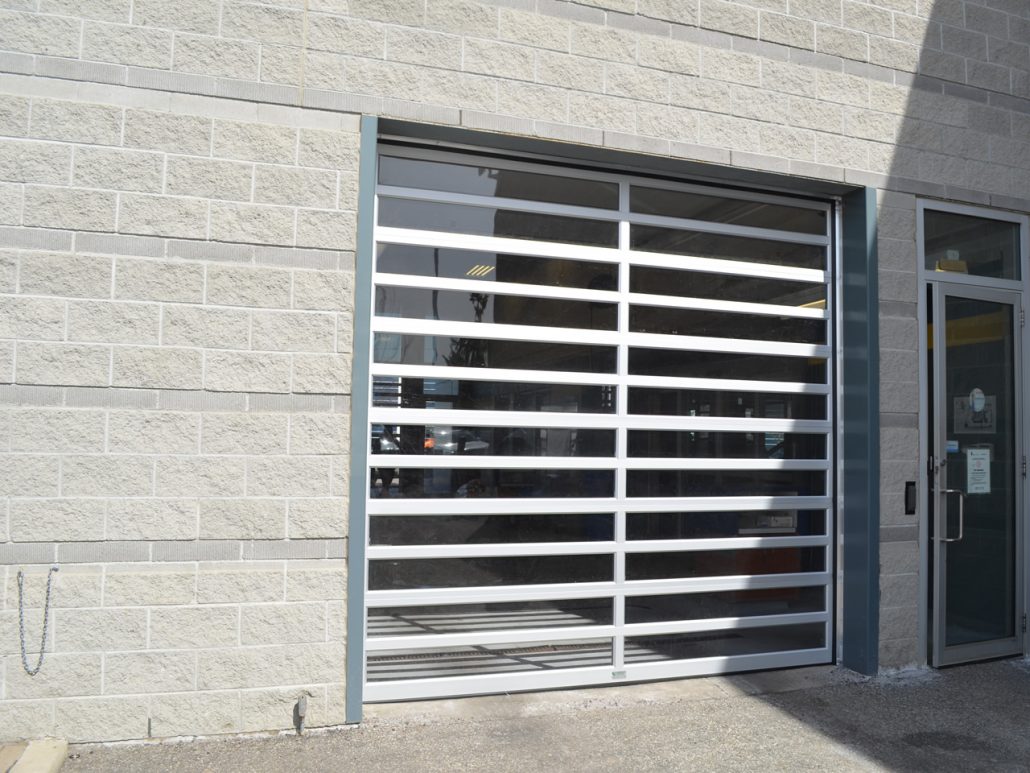

Aluminum sectional doors from SDI are an attractive solution where unobstructed visibility is required. Designed to withstand the rigours of busy service centres, these doors are manufactured from 6064-T6 high-quality aluminum alloy extrusions.

Door Features:

• Manufactured from 6064-T6 high-quality aluminum alloy extrusions
• Special construction for high-cycle and springless design available
• Designed to meet industry standard windload requirements
• Continuous internal reinforcement for hardware mounting
• Neoprene bulb weatherstrip with retainer and dual finned seals between sections
• Single and double end roller brackets available

Operation: Push-up, Chain Hoist, or Motor.

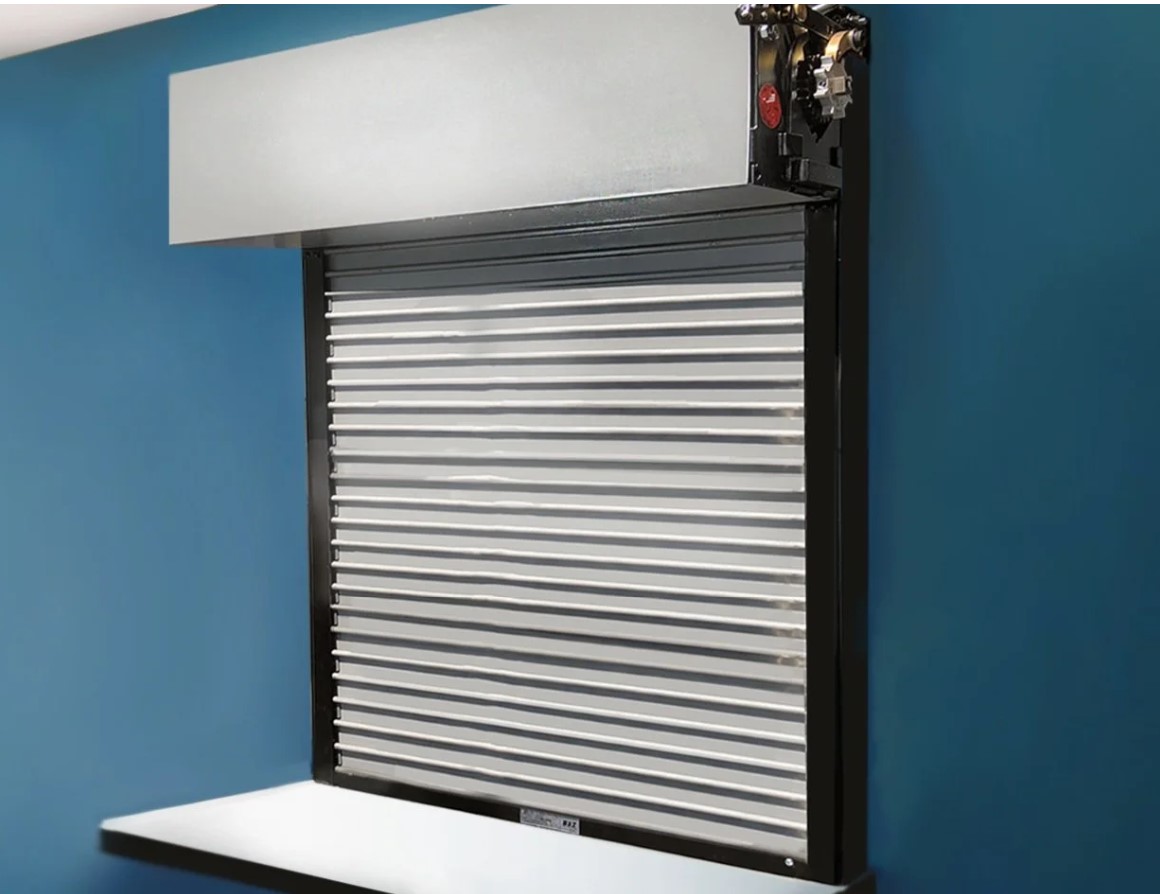

SDI counter fire shutters are a clean and attractive solution for adding fire-rated security to service counters, concessions, and pass-throughs. Compact 10" brackets on all door sizes — ideal for minimal headroom applications.

Door Features:

• Rugged 2" flat slats 22 ga. steel
• Corrosion resistant grey prime or galvanized steel finish
• Oil tempered torsion springs with high cycle life
• Compact mechanical governor — closing speed 6" to 2' per second
• Fuse link release device available
• Drop test by single technician, resets from one side

Operation: Push-up or Crank. Each available in between jamb or face of wall mounting.

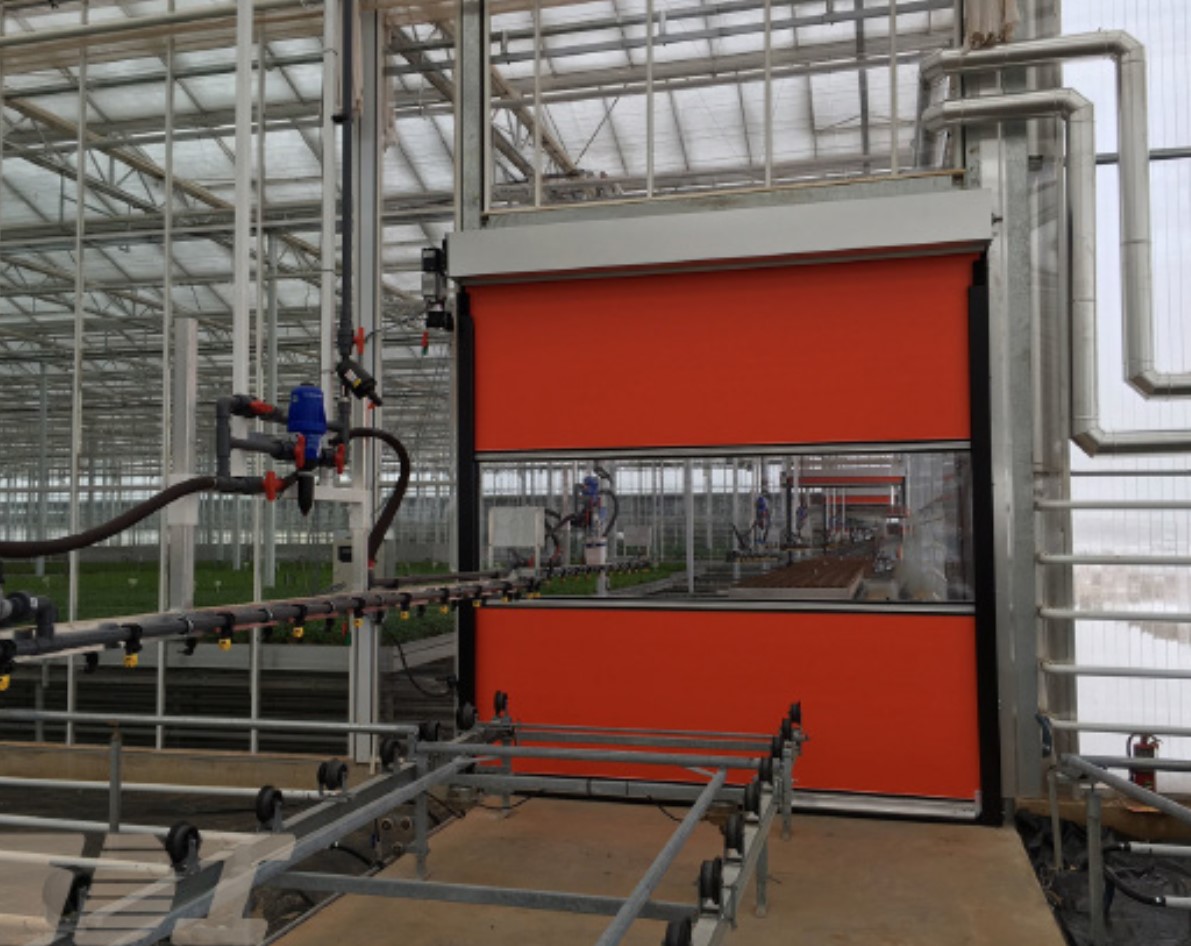

SDI fabric doors are manufactured, configured, stocked and assembled in Canada using high-quality materials. Composed of weather & puncture resistant fabric with a layer of woven mono-filament PVC, the HS200 and E100 model fabric doors are virtually indestructible.

Door Features:

• PVC coated polyester monofilament fabric available in blue, orange, and black
• Aluminum bottom bar gives way on impact for easy repair
• Resilient and flexible at temperatures from -15°C to +90°C
• Airtight seal ideal where heat loss or gain is a concern
• Clear PVC vision panel at 36" height
• Food-grade certified for food facilities

Models: HS200 (High-Speed/High-Cycle), E100 (Economy/Standard).

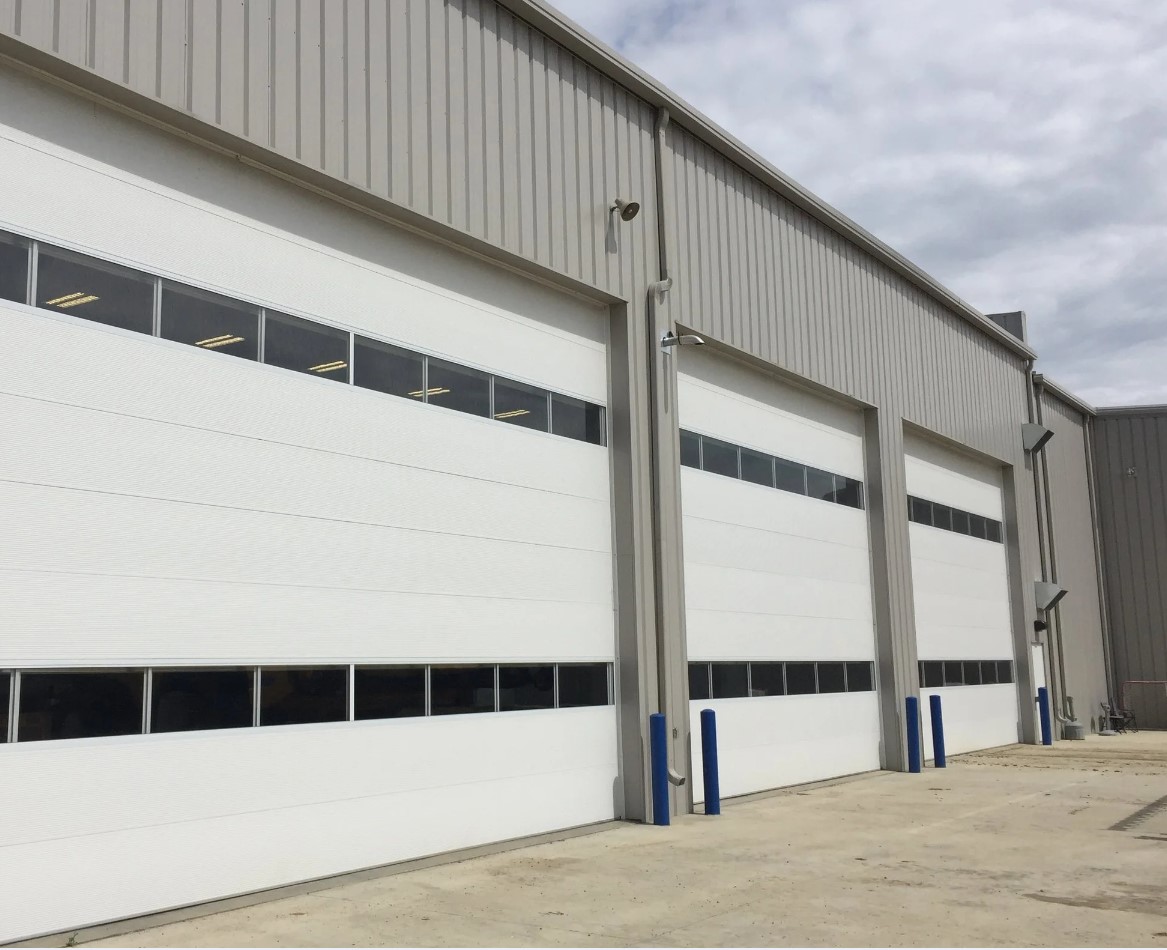

Steel sectional doors from SDI are an attractive solution where strength and insulation are required. These long-lasting door systems offer many years of service for your industrial or commercial facility.

Manufactured on a continuous polyurethane production line utilizing the latest in rigid foam technology. High strength-to-weight ratio to ensure a strong and long-lasting door system. Manufactured, engineered, stocked and assembled in Canada.

Door Features:

• Insulated sections fabricated from prepainted, hot-dip galvanized steel sheet with rigid polyurethane insulation core (CFC-free)
• Sections thermally broken, steel-polyurethane-steel sandwich formed by continuous process
• Sections formed with shiplap joint and 16mm (16ga) galvanized steel end-caps
• Continuous internal reinforcement for hardware mounting
• Neoprene bulb weatherstrip with retainer and dual finned seals between sections
• Face sheet stucco embossed and rib reinforced

Models: C150, C175, C200, C200C (8 colours), C300. Available in 2" (50mm) and 3" (75mm) panel thicknesses.

Glazing: All models support glazing sections. C200, C200C, and C300 also available in full-view configuration.

Operation: Push-up, Chain Hoist, or Motor.

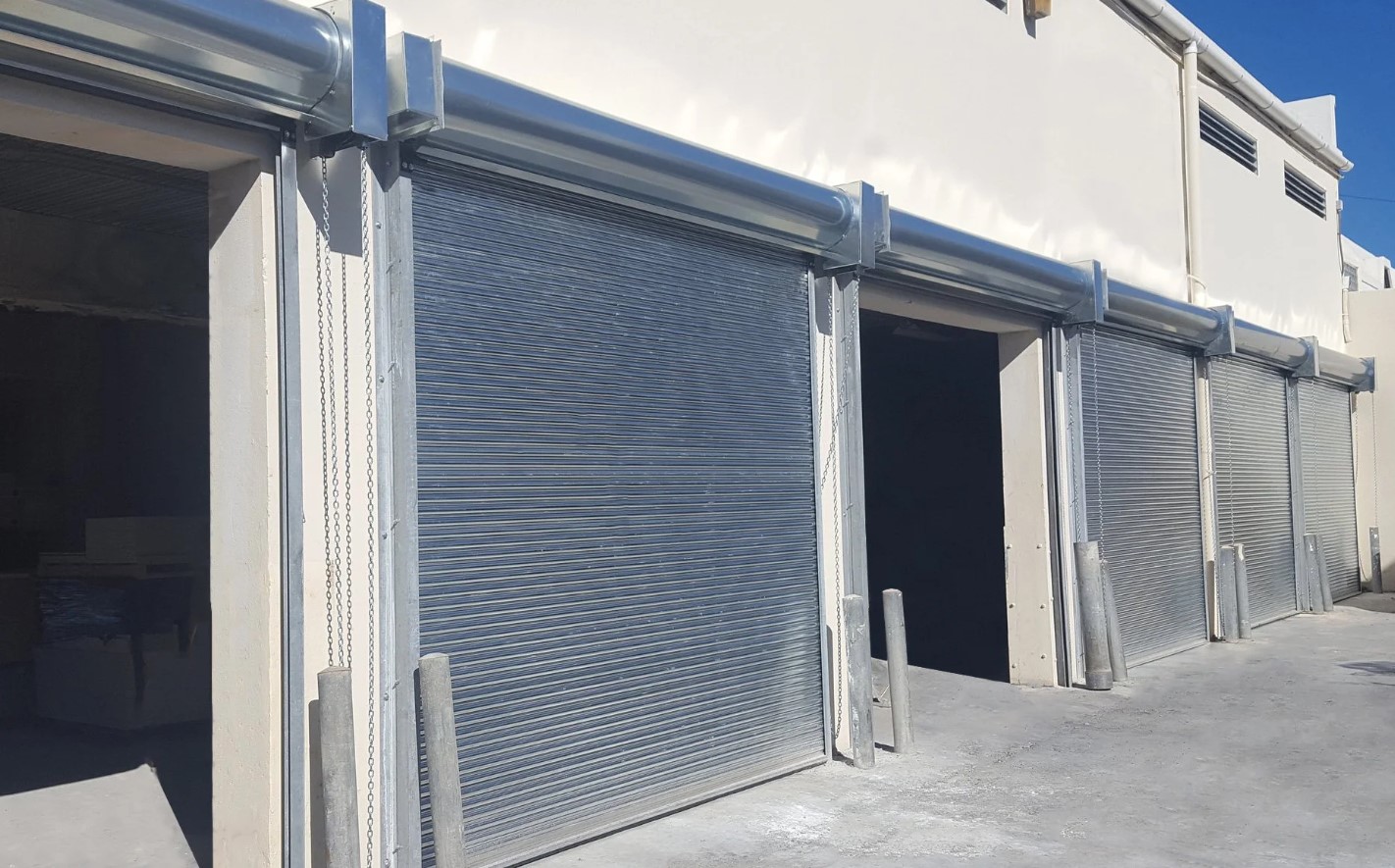

SDI manufactures three rolling steel door product lines in-house in Canada — built to last with years of trouble-free operation and easy repairs.

Rolling Steel Service Doors:

• Rugged 2" flat or curved slats in 22 ga. steel
• Rugged 3" flat or curved slats in 22, 20, or 18 ga. steel
• G90 galvanized curtain and hood — no painting required
• Operation: Push-up, Chain Hoist, or Motor (Belt/Gear Head)

Insulated Rolling Steel Doors:

• 3" flat insulated slats with 22 ga. inner/outer steel
• Solid insulation for consistent density and complete coverage
• Optional powder coat finish available
• Operation: Chain Hoist or Motor (Belt/Gear Head)

Counter Doors:

• 2" flat slats in 22 ga. steel
• Available in grey prime or 180 standard powder coat colours
• Compact 10" brackets — minimal headroom required
• Oil tempered torsion springs with high cycle life
• Operation: Push-up, Motor, or Crank

SDI Rolling steel fire doors are engineered and manufactured in-house. Custom to your projects, these doors offer many years of trouble-free operation. Made with high-quality steel components, available with 2" 22ga. curved or flat slats.

The G90 galvanized curtain and hood does not require further painting. Features a fluid governor release mechanism for smooth and quiet operation.

Key Features:

• Rugged 2" flat slats 22 ga. steel
• Available in push up, chain hoist, stay open and motor operation
• Fluid governor release mechanism for smooth and quiet operations
• G90 galvanized curtain and hood — no painting required
• Steel plate brackets (more durable than stamped steel)
• Between jamb mount also available
• Drop test can be performed by a single technician
• Resets from one side of opening, reducing testing costs

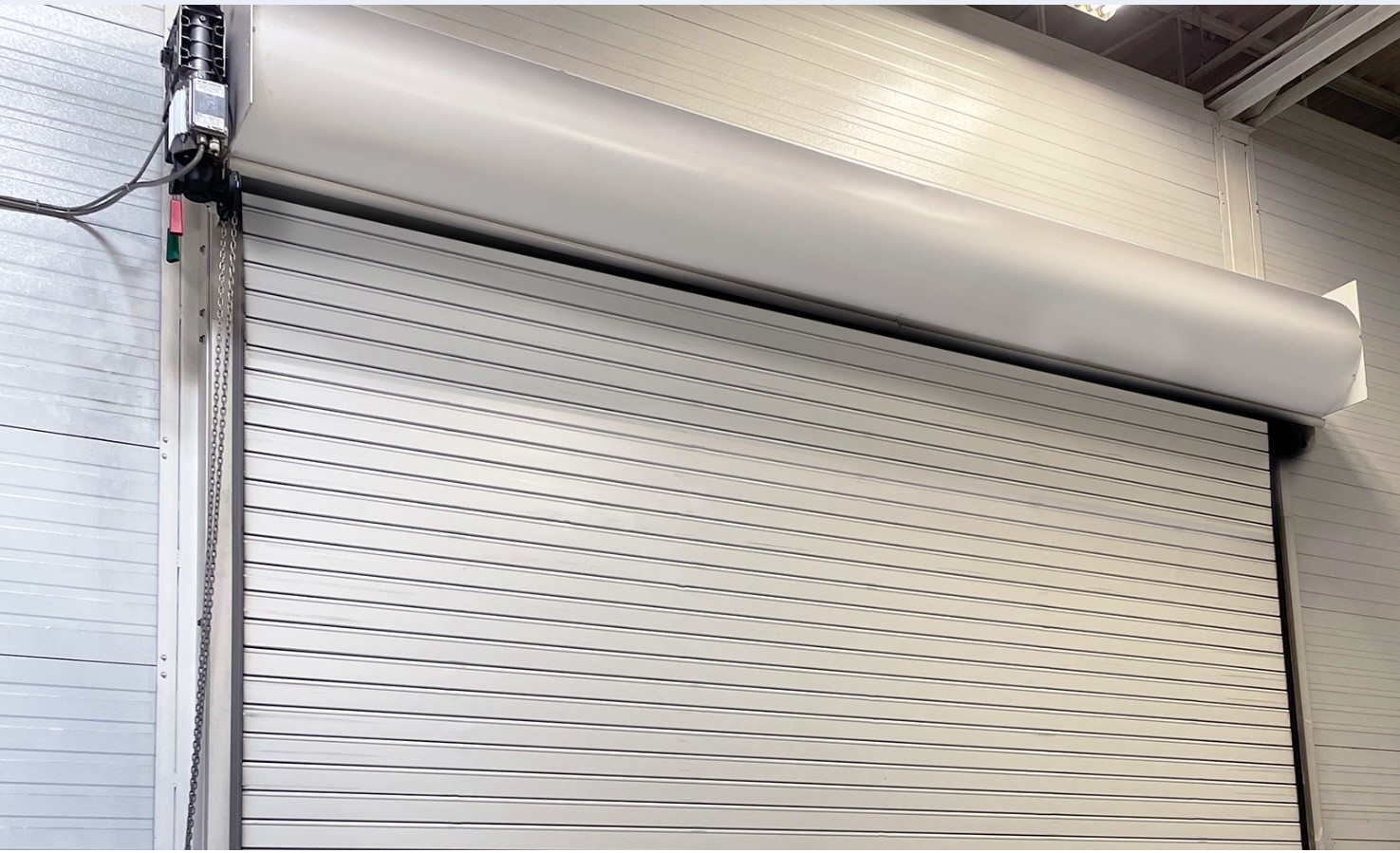

SDI High-Performance Springless Rolling Steel Doors move at up to 18 inches per second — paired with the SDI Safedrive operator for safe, efficient, high-speed operation. The springless design eliminates spring replacement costs, center mounting supports, and floor-level maintenance makes service fast and simple.

System Features:

• High speed and low maintenance with energy efficiency
• No springs — no spring replacement costs or center supports
• Floor-level limit and door level adjustments (no lift required)
• Wide range of door face options to match any exterior
• Emergency chain hoist built in
• UL325 approved panel & reflective photocell
• Wireless air wave safety edge included

Standard Package:

• Safedrive Operator
• UL325 Approved Control Panel
• Photoreflective photoeye
• Wireless Safety Edge

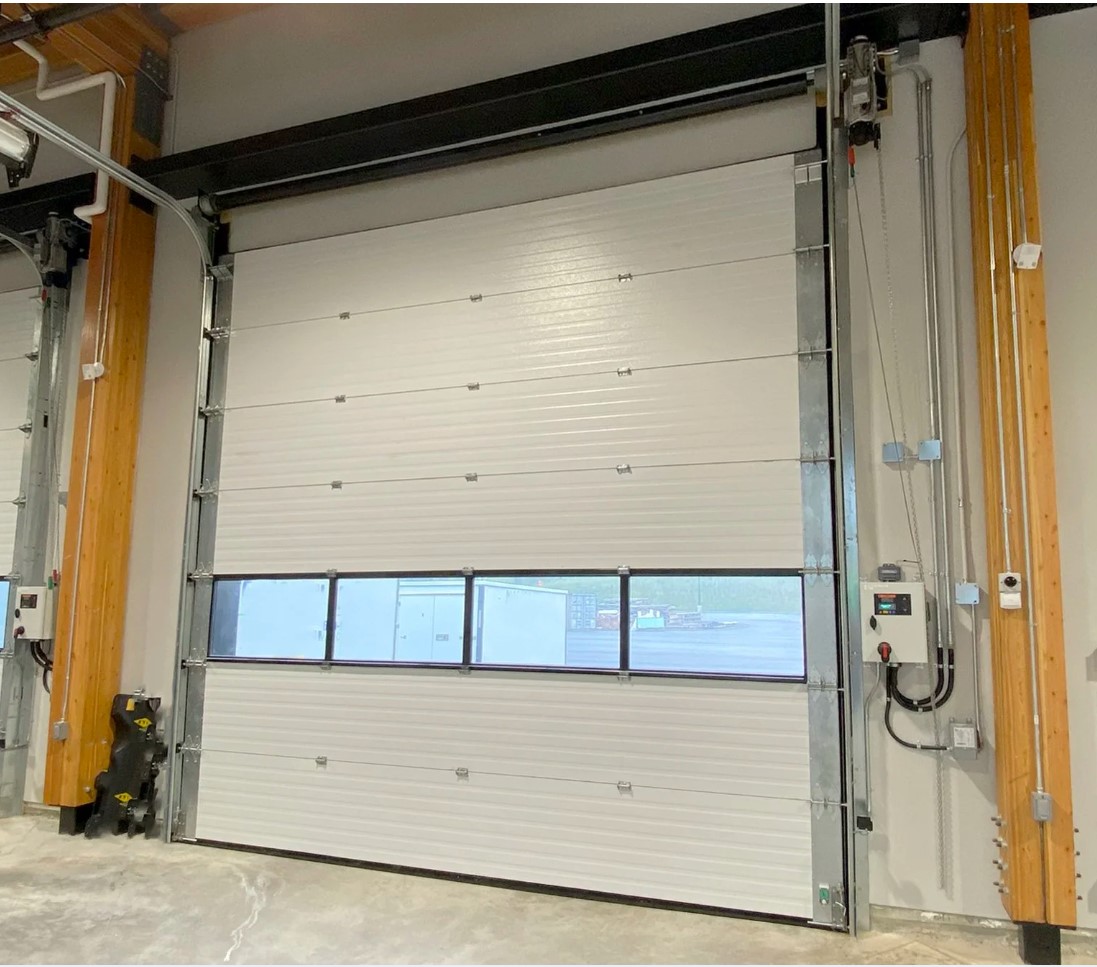

SDI High-Performance Springless Sectional Doors eliminate springs entirely — reducing maintenance costs and eliminating the need for center mounting supports. All adjustments are made from floor level without a lift.

System Features:

• High speed and low maintenance with energy efficiency
• No springs — no spring replacement costs or center supports
• Floor-level limit and door level adjustments (no lift required)
• Wide range of door face options to match any exterior
• Emergency chain hoist built in
• UL325 approved panel & reflective photocell
• Wireless air wave safety edge included

Standard Package:

• Safedrive Operator
• UL325 Approved Control Panel
• Photoreflective photoeye
• High Cycle Rollers
• Barrel

Car Wash Package:

• Stainless Steel Control Panel
• Thru-beam car wash photocell
• Drive with covered brake
• Powdercoated track, hardware & barrel

Commercial-grade roll shutters engineered for storefronts, large openings, and high-security applications. Protection against vandalism, theft, intrusion, and weather for commercial and institutional buildings.

Available Profiles:

• AG-77 HD — Designed for large openings. Insulated with polyurethane foam, it is an energy-efficient, medium-duty solution for vandalism prevention and protection of garage doors and entryways.
• Safe View — Storefront security with 24-hour visibility. See-through extruded aluminum profile that lets you confidently showcase products after-hours knowing they are safe and secure. Available in multiple profile combinations.
• Mammoth — Talius’ largest and strongest profile ever released, engineered for unmatched strength and durability. Designed for oversized openings, it is the ultimate garage door alternative combining security, space savings, and sleek design.

All profiles provide protection against vandalism, light, sound, and weather. Made-to-order in a range of colours with manual crank or motorized operation.

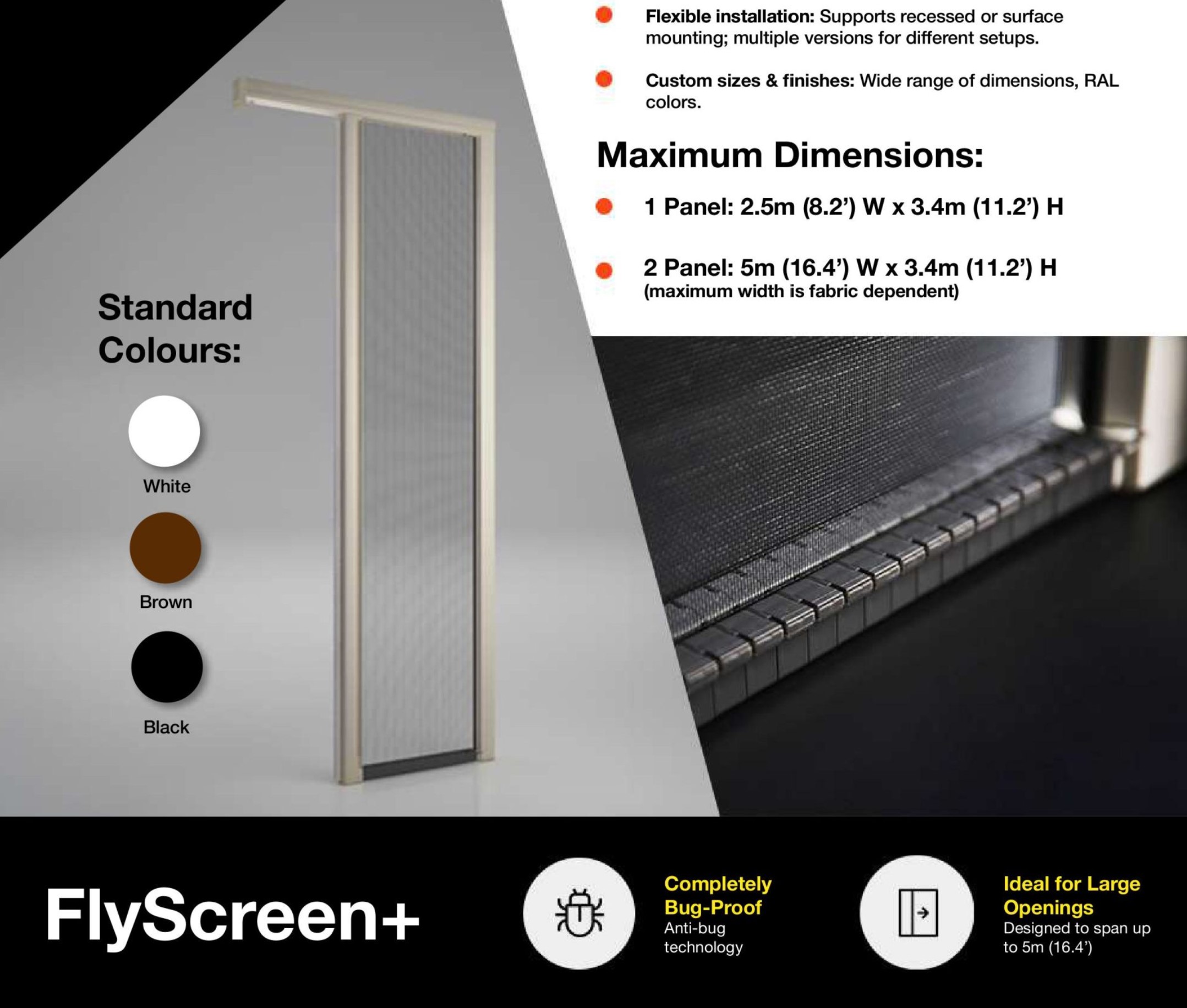

Talius Fly Screens deliver smooth operation, total insect protection, and a clean, barrier-free finish. Engineered for excellence — redefine what bug-proof living looks like without compromising design or performance.

Available Models:

• Fly Screen — A lateral, bug-proof screen with no bottom rail for seamless, unobstructed passage. Horizontal sliding system ideal for large openings. Patented wind class 6 resistance. Max 5m (16.4') wide x 3.4m (11.2') high in 2-panel configuration.
• Fly Screen 2D — Dual-purpose design supporting both horizontal and vertical orientations — a 2-in-1 system. Gliding system ideal for windows. Max 3.2m (10.4') wide x 2.6m (8.2') high in 2-panel lateral configuration.

Both models support recessed or surface mounting with flexible installation options. Available in White, Brown, Black and custom RAL colors.

Talius Habitat Screens are energy-efficient exterior screens designed to block the sun without blocking your view — the perfect shading solution for energy efficiency.

Three Configurations:

• Habitat Screens — Superior solar protection, UV mitigation, and optimized comfort
• Habitat Plus — Robust design with versatile mounting for challenging installations
• Habitat Clear — Durable protection against wind, rain, hail, snow, dust, and light debris

Available in White, Beige, Brown, Silver, and Black fabric options.

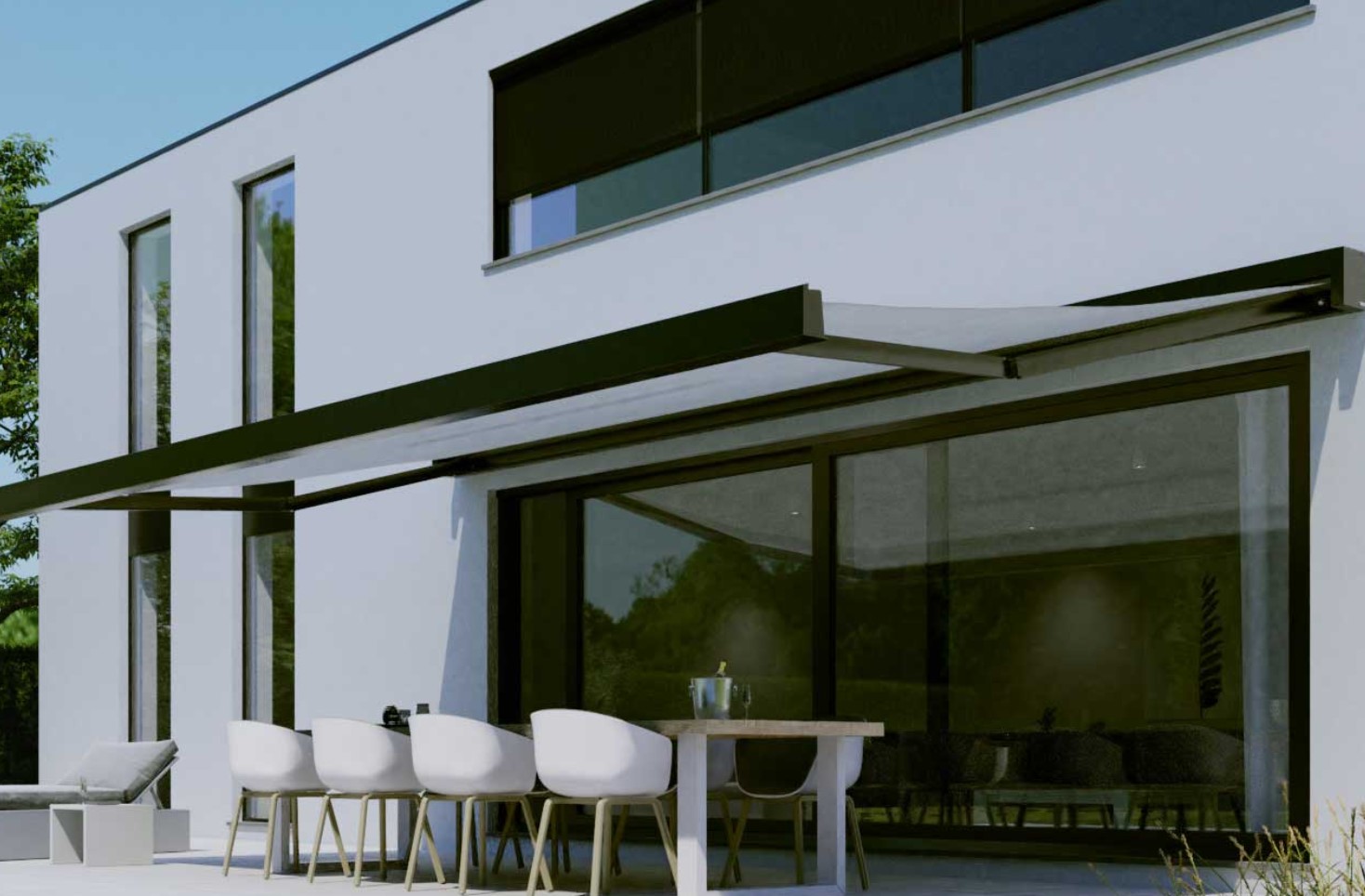

An innovative awning solution that combines elegance and comfort for outdoor patios and spaces. Talius Retractable Awnings provide effective protection against the sun, allowing you to maximize the use of your outdoor spaces without the worry of excessive indoor heat.

Key Benefits:

• Comfort — Shade your patio or outdoor space with cooling protection from the sun. Regulate temperatures and reduce indoor heat during hot months.
• Privacy — Create a private outdoor oasis with retractable coverage that extends when you need it and retracts when you don't.
• Complete Automation — Available in manual or fully motorized operation for effortless control.
